Suburban ap-445 high precision angle plate with vee

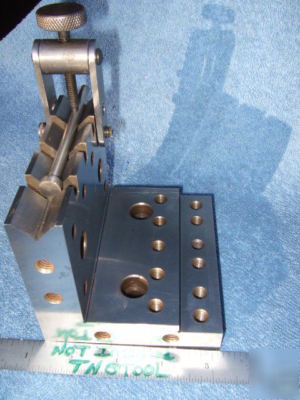

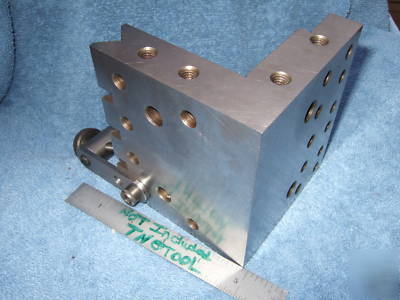

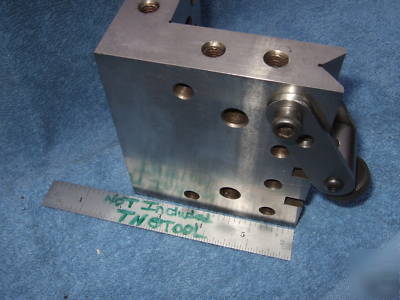

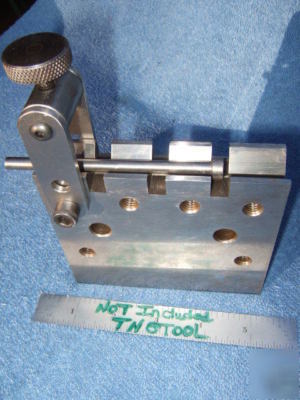

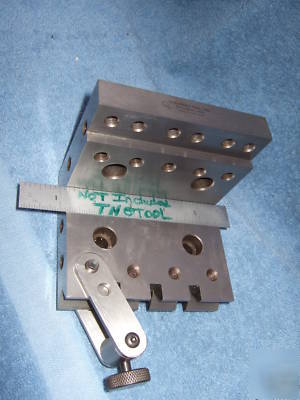

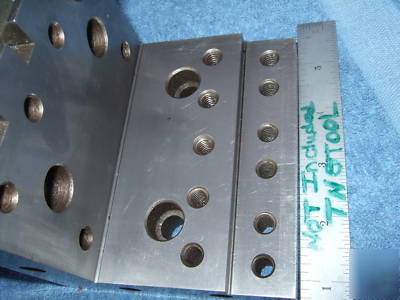

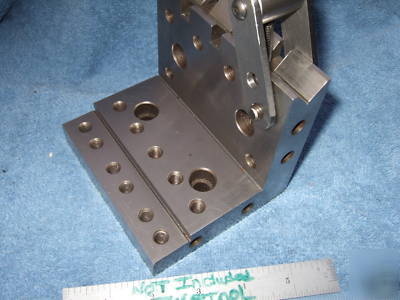

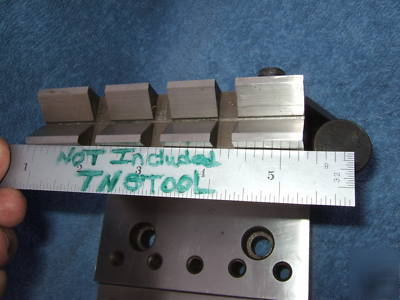

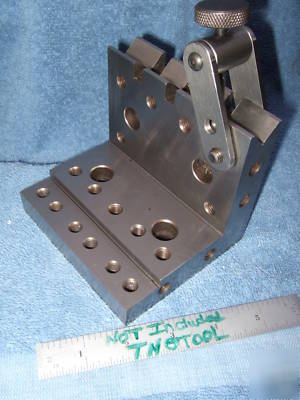

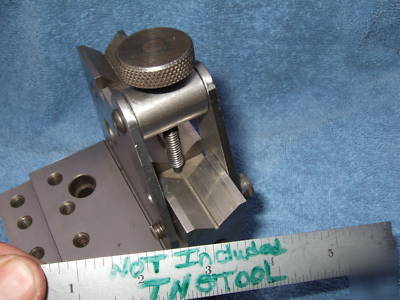

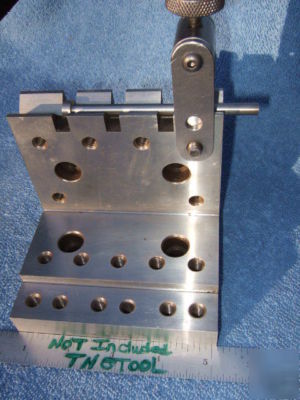

SUBURBAN TOOL CO AP-445 WITH YOKE CLAMP AS PICTURED!!! LOGO IS ON TOOL AND IS CLEARLY SHOWN! THIS IS A USA MADE TOOL NOT A CHINESE KNOCK-OFF~! . HIGH PRECISION ANGLE PLATE WITH VEE (1) AND STEPS AS SHOWN. EXCELLENT USED TOOL WITH SOME VERY MINOR OR LIGHT STAINING AS SHOWN IN PICS. ANGLE BLOCK WAS STORED IN A GERSTNER BOX!!!!! . SAVE SOME $$$$ HERE CURRENT LIST IS $541 CLAMPS ARE AVAILABLE AT EXTRA COST JUST ASK!!!!!!!! SPECS BELOW FROM SUBURBAN TOOL CO. WEBSITE FOR A NEW TOOL.
The model AP-445 is an extremely versatile angle plate with a vee, slots and a step for holding a wide variety of workpieces. Optional face clamp, side clamp and adjustable yoke clamp are available to extend the usefulness of the angle plate even more.
* Steel angle plates, hardened to 58-62 Rc.
* All sides precision ground flat, parallel and square within .0002"
* 1" x 1/4" deep step in 4 x 4 x 4-1/2" Angle Plate plus Vee to hold cylindrical parts with or without shoulders. Twenty-five 5/16-18 tapped holes.
