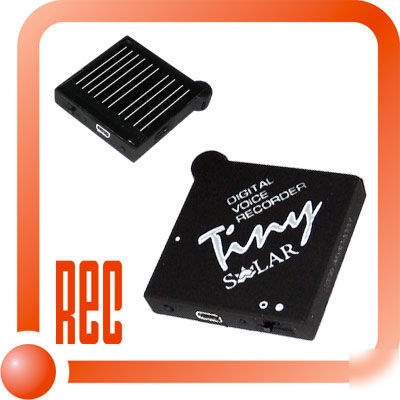

Spy digital voice recorder edic-mini tiny solar 300H
The EDIC-Mini Tiny digital voice recorder (DVR) is used for professional voice recording on to a flash media following by copying to a computer. The main distinctive feature of this model is the solar battery (in addition to a Li-Pol battery), which allows endless recording mode, the so-called "black box" mode, and its retail cost is about 600 $.
* Extremely small size and weight
* Wide frequency range, wide dynamic range and a highly sensitive built-in microphone
* As a recorder does not have any moving parts, it can be used in challenging environment: at wide temperature range, shaking, and dustiness
* Can use the recorder in black box mode while recharging the rechargeable battery with the solar battery. This mode allows continuous loop recording without external power supply.
* Recorder voice activating system, VAS, allowing effective compressing pauses in messages, increases the length of a record while minimizing memory usage. Time intervals stay the same. If recording are copied to a PC, pause lengths can be restored or skipped according to program settings
* An internal clock and a calendar allow starting recording according to time setting
* To secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings
* Every record made with the DVR is marked with the recording start time and date, and has a digital signature to define the DVR, which was used to make the record, and possible modification of the record file
* The DVR operation modes are indicated with the LED indicator
* The firmware can be upgraded using a USB interface
Built-in microphone sensitivity
Without compression, u-Law (2/1), ADPCM (2 and 4 bit)
Maximum recording capacity * (sample rate 8 kHz, 2-bit ADPCM)
Solar battery + Li-Pol battery
Battery life in record mode **
at sample rate 8 kHz, without compression - 60 hours (in the dark);
at VAS mode - up to 200 hours (in the dark);
* * - see table 1 for detailed information about recording capacity
* ** - see table 2 for detailed information about battery live (in the dark)
Table 1. Recording capacity depends on compression algorithm and sample rate throught coefficient K
K is the coefficient, showing how many times the maximum record time decreases at record mode change relative to 2-bit ADPCM mode (maximum recording capacity). For example, the record time will be 17920/5=3584 minutes minutes for model Solar 300h (17920) in the without-compression mode, at sample rate of 8 kHz (k=5).
Logarithmic Compression (u-Law)
Table 2. Battery life depends on compression algorithm and sample rate
Software (The Rec Manager for Edic Tiny)
The Rec Manager for Edic Tiny is an application that works with Edic Tiny recorders.
The program is available for Windows 98/2000/XP/Vista. For normal program functionality, computer hardware has to be the same that recommended for a normal Windows 98/2000/XP/Vista operation.
* Reviewing the recorder s memory
* Uploading recordings from the recorder to a PC in WAV format
* Erasing recordings from the recorder s memory
* Downloading recordings from a PC to the recorder
* Showing the status of the recordings (uploaded/not uploaded/downloaded)
* Creating a recording s digital watermark (only for the recordings that were created by the currently connected recorder)
* Using a part of the recorder s memory as a flash memory (downloading, uploading, and erasing any available files) Flash Drive
* Synchronizing of the recorder clock with the clock of the computer
* Showing the power supply (battery life) status
* Setting of the recorder s parameters
* Formatting the recorder s memory
* Supporting a multi language mode
* Operation manual for DVR, with the supplement enclosed
* Defective item or content discrepancies must be reported within seven (7) days of delivery
* We offer a money back guarantee if you are unsatisfied with any of our products
* RMA number is required for all returns
* Note we are not responsible for the duties or taxes your country may impose nor can we predict what those fees are
* Telesystems is the leading Russian producer of miniature professional digital audio recorders and audio-video recorders, audio recording modules and accessories for all mentioned devices
* Telesystems have already registered digital audio recorder in Guinness World Records as the world's smallest in 2004. Later, in 2007 our digital audio recorder B21 has become the world's smallest one and was registered in Guinness World Records - the Russian edition
* Today Telesystems have produced even a smaller digital audio recorder model A31 and have beaten our own records. Guinness World Records has confirmed its tiny size in May, 2009
* Telesystems are developing and manufacturing following kinds of production:
* Six series of the Edic-mini Miniature Professional Digital Audio Recorders: Edic-mini, Edic-mini Tiny, Edic-mini Tiny 16, Edic-mini LCD, Edic-mini Pro and Edic-mini Plus. The Edic-mini Tiny series is the Guinness Book of Records winner the world's smallest professional audio recorders
* The Professional Miniature Audio-Video recorders the mAVR models that are famous for their small size, low power consumption and progressive Wavelet algorithm for video compression
* EMM/EMMS Tiny Audio Recording Modules that can be used for manufacturing other recording devices of different design
* Accessories for all mentioned devices
