> Panelcrafter 24 inch air clamp arched door shaper jig

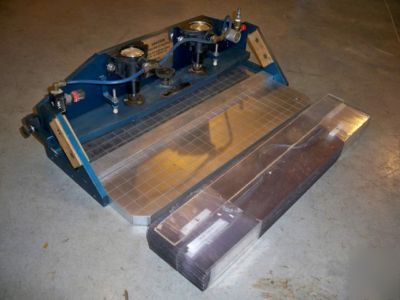

Panelcrafter 24 inch air clamp arched door shaper jig
Made by Reliable Cutting Tools
Includes One Set of Liberty Design Templates
We realize the quality of your product is all-important. We have built the finest fixture available for rapid production of raised panel cabinet doors. A complete door can be made in minutes
Glides on a cushion of air (.008/.003 )
Safely keeps hands away from cutters
Made from the finest aircraft aluminum
Ideal for making raised panel cabinet doors up to 2" x 24"
Air pressure required: 85 lbs
PC609 unit weight: Apx. 47 lbs
Replacement parts: Always available
The X & Y movement is made easy by means of a reverse air flow system. With the control valve, on the left, you control the amount of air cushion from .001 to .003, thru a series of air jets on the bottom of the unit, eliminating friction.
The material is centered with a rack & pinion connected directly to the pinion gear with a knob, for easy, maintenance free operation. For safety, hands are kept away from the cutters.
Coping is fast, easy & safe with the PC609 PANELCRAFTER. The cope bar is attached to the base with two knob screws. Use a blowout or backer board with the cope bar to eliminate blowout.
Rail cutting is safe & easy using the PC609. Using a straight template, or use straight edge of the #2 female template, on a fence or ball bearing rub collar; adjust cutters to proper depth, then clamp the material securely with the pneumatic clamping cylinders.
Above and below are pictures of damage due to jig contact with the shaper cutter. At some point the operator didn t set the cutter to the correct height and hit the cutter. This is only cosmetic and does not affect the performance of the jig.
