New * * allen bradley 1788-CN2DN /a 1788CN2DN devicenet
Rockwell Automation > PLC & HMI > I/O Products > PLC-5 > 1788-CN2DN/A
The ControlNet-to-DeviceNet (CN2DN) linking device connects a ControlNet network to a DeviceNet network. The DeviceNet network typically consists of multiple devices, such as RediStation s, photoeyes, etc. The ControlNet network consists of controllers, such as Logix or PLC-5 processors, HMIs, drives, I/O devices, etc.
(1) ControlNet port with support for redundant media; (1) ControlNet network access port ; (1) DeviceNet port.. Rotary switches are used to set the ControlNet & DeviceNet node addresses and DeviceNet node data rate. The CNet Status LEDs display the current status of each of the redundant media channels. The DNet LEDs display the current status of the network and the I/O channel. Module Status and Linking Activity LEDs are provided. The power supply connector is wired to 24V DC.
The CN2DN has two broad functions: 1. supporting closed-loop control, 2. configuration and monitoring. The CN2DN maintains internal input, output, and status structures to reduce the complexity of connecting DeviceNet I/O and status data with ladder programs and to make diagnostic information available to the user.

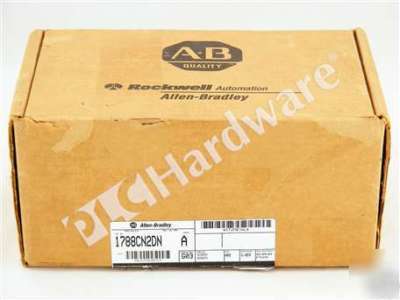

One New Open Box Allen Bradley 1788-CN2DN, ControlNet-to-DeviceNet Linking Device.
