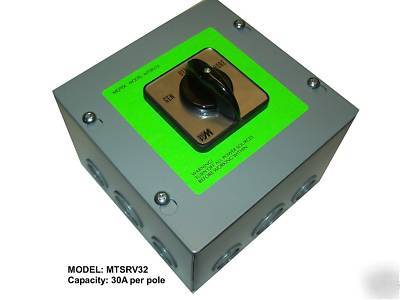

30 amp manual transfer switch (universal)
WELCOME TO MQTEK INDUSTRIAL SUPPLY
ASSEMBLED AND TESTED WITH PRIDE IN CANADA
* 30 ampere per pole capacity at 240VAC
* Box dimensions: 6x6x4 (LxWxD) in inches
* Maximum generator capacity is 6.6KW
Manual Transfer switch from shoreline power and RV on-board generator
Manual Transfer switch for universal application
Industrial grade cam switch that can withstand vehicle vibration
BREAK BEFORE MAKE design guarantees only one source will be used at a time
Parts are UL, CSA and/or CE approved
Assembled to comply with CSA file C22.2 No. 178.1-07
No complex electronic modules so less breakdown and malfunction
Heavy duty NEMA 1, hinged indoor enclosure , ANSI/ASA61 grey painted
"GLOW IN THE DARK" style face label, fluorescent green
Epoxy textured powder coating inside out with 4 mounting holes
Easy removable knockouts on all sides ( Conduit size 1/2", 3/4" and 1")
Lots of room for wiring harness
Horizontal or vertical mounting
The MTSRV32 is intended for use as a safe way of transferring from generator
or shoreline power source for your mobile home.It can also be used to power two loads from one source. This switch transfers two hot line and neutral (2L+N) from one source to your RV load.
If you need more, contact us we will list more
if you have any question, please do not hesitate to email us
* Expected time of receipt - 6 to 12 business days for both USA and Canada
What is the minimum wire size for MTSRV32, 30AMP and MTSRV63, 60A transfer switches?
AWG No.10 for TW60, TW75, RW75, R90, TW90, RW90 and T90 Nylon
AWG No.6 for TW60 and AWG No.8 for RW65, TW75, R90, TW90, RW90 and T90 Nylon
For flexible cord such as Type SOW, SOJ, etc. consult your electrical code tables.
I have two identical motor pumps that I want to power up one at a time. The motors are 220VAC plus ground, can I use this switch?
Yes you can. Make sure that the capacity of this switch is greater than the motors FLA or Full Load Amperes. Also, your motor circuit should be protected by an overload relay and fuse/breaker. This switch is non-fusible. Consult a qualified electrician for any questions.
I have two of 3 phase, 3 wire motor. Can I use this switch with power coming from one source?
Yes you can. Again, make sure that your motor protection is adequate, fuses/breaker and overload relay is not part of this switch. This switch only transfer the feed from one source to any motor you selected to run. This switch is non-fusible. Consult a qualified electrician for any questions.
Can I use this transfer switch outdoor?
No. This transfer switch is not to be used outdoor. For outdoor application, we have some high quality boxes designed for outdoor use. These are rain tight. You have to punch your own holes though. We also suggest putting caulking on mounting holes to prevent moisture and water from creeping in. This is more expensive than a regular box. Contact us for details.
Using two power sources and one load, is there a potential to backfeed?
No. If you wire the system properly, there is no chance for the switch to backfeed. The switch has an OFF position. This position is NEUTRAL. We call it BREAK BEFORE MAKE, meaning disconnecting the first circuit before connecting to the next circuit. After thousands of operation, there is a potential for the switch to jam but will still NOT backfeed. Do not attempt to repair. De-energize all power sources and replace immediately.
Yes, it s possible. Contact us for details.
We would like to build a panel around this switch. We would like you to wire the panel for us with metering and fuses/circuit breakers. Is it possible?
Yes we have the capability to build electrical panels. Contact us for details or send us the schematics and we can go from there.
THIS SWITCH IS NOT FOR DIY PERSON. WE DO NOT ENCOURAGE INEXPERIENCED OR UNQUALIFIED PERSON TO WORK ON THIS SWITCH !
