10X cherry microswitch/micro switch 25A 1HP 125VAC #223

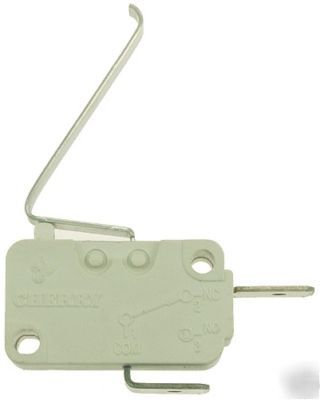

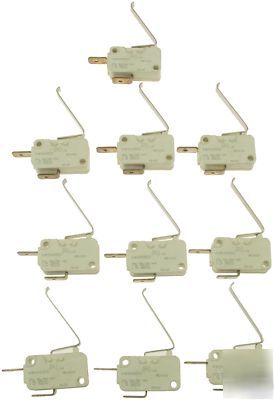

Lot of 10 Cherry Snap-Action Microswitches with Actuation Lever 125/250VAC 25A
lot of 10 quantity brand new Cherry KWSA0003 microswitches with actuation lever. The actuation lever is removable if it is not needed. Rated at 25A 1HP 125VAC and 25A 2HP 250VAC. This switch is SPST (single pole single throw) and NC (normally closed). The wiring terminals are 1/4" wide push-on spades. These switches have two mounting holes which go all the way through them for mounting with machine bolts or rivets.

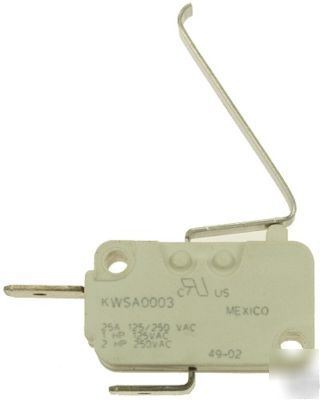

Manufacturers Part #: KWSA0003
Overall Dimensions: 2" Tall x 1-1/2" Wide x 3/8" Deep (including wiring terminals)
Contacts: NC (normally closed)
