> 2N3773 16A 150W 140V npn metal transistor T03 rohs

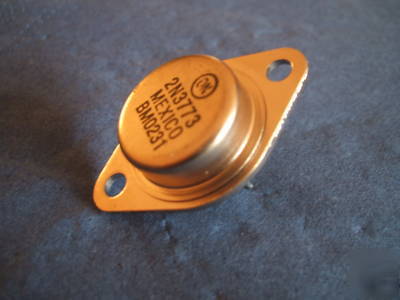

2N3773 16A 150W 140V npn metal transistor T03 rohs
2N3773 Silicon Power Transistor
The 2N3773 is a PowerBase_power transistor designed for high power audio, amplifiers and power supplies.
These devices can also be used in power switching circuits such as relay or solenoid drivers, DC DC converters or inverters. And as a higher power alternative to the 2N3055
High Safe Operating Area (100% Tested) 150 W @ 100 V
Completely Characterized for Linear Operation
High DC Current Gain and Low Saturation Voltage
VCE(sat) = 1.4 V (Max) @ IC = 8.0 A, IB = 0.8 A
Collector Current Continuous
Total Power Dissipation @ TA = 25 C Derate above 25 C
Operating and Storage Junction Temperature Range
