Ef johnson 5300 mro headphone interface (quick install)


This is a DUAL Headset adaptor and External speaker interface box
for the EF Johnson 5300 series radios.

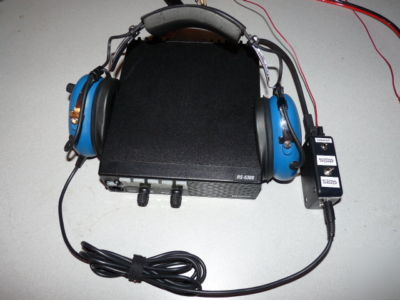

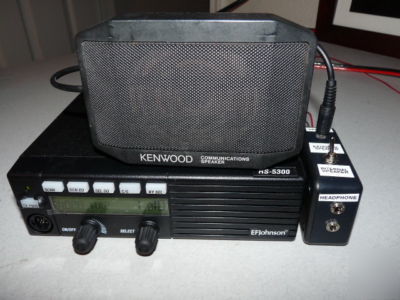

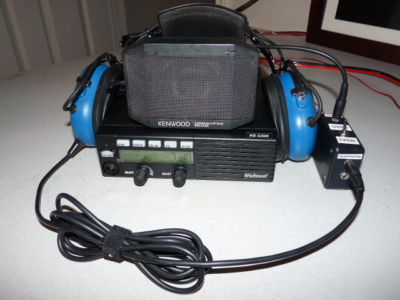

The EFJ Radio, Headphone and Kenwood Speaker are not included. They are displayed for demonstration purposes only.
Perfect for you Civil Air Patrol communicators that are fighting all the noise during missions.
Every MRO, CUL & DC should have a couple of these in their go-kit.

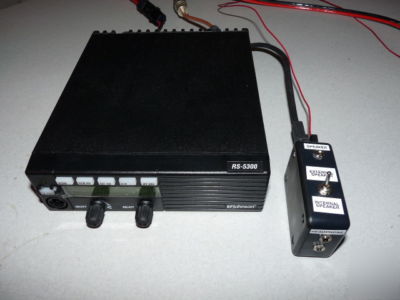

This interface is designed to plug directly into an existing EFJ 5300 radio installation.

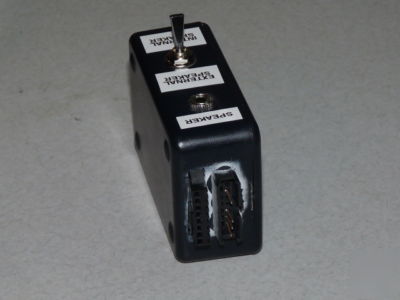

Just insert this box between the 8 pin Accessory connector and the pigtail on the back of the radio.
NO TOOLS REQUIRED. NO REWIRING OR SPLICING.

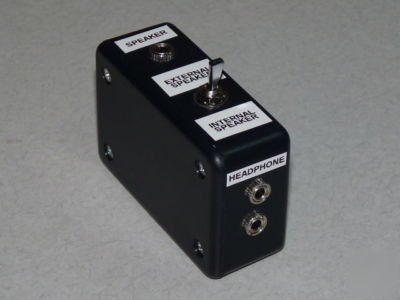

TWO 3.5mm headset jacks allow for STEREO or MONO plugs. It has a load on all ports, so less risk of shorting the output.

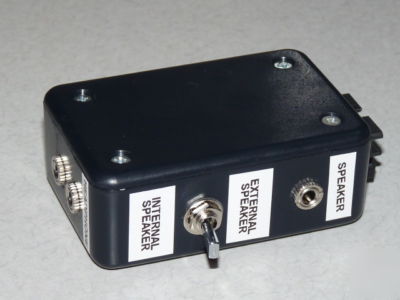

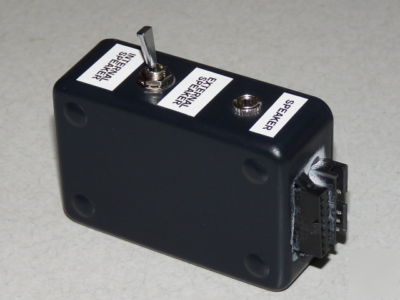

The switch allows the user to disable the internal speaker in the radio, use headphones only and/or also select the external speaker jack. (headset works regardless)
So, if you need headphone function and/or external speaker output for the EFJ 5300 radio, this is for you.
