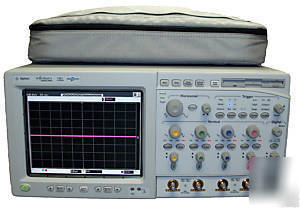

Agilent/hp 54832D/080 1 ghz 4 channel oscilloscope
3 Mfr Part No Accessory Description
1 8121-1609 OPT-903 18-AWG 3-COND 90-IN-LG
3 1150-7913 OPTICAL WHEEL MOUSE
4 54826-68701 PROBE CABLE ASSEMBLY
5 54826-61604 ..W/PROBE ASSEMBLY
6 5959-9333 ..W/PROBE LEADS REPLACE
7 5959-9335 Replacement pod grounds
8 5959-9334 GROUND LEADS, 2" [5]
9 5090-4833 GRABBER KIT ASSY
10 54810-68701 ACCESSORY POUCH
11 54810-42201 COVER-FRONT PANEL
12 54830-97005 USER'S QUICK START GUIDE
Description:Mixed-Signal Oscilloscope (MSO), with 4 scope channels and 16 timing channels. Combines the detailed signal analysis of a scope with the multi-channel timing measurements of a logic analyzer. Both the analog circuit characteristics on the two scope channels and the digital signals on the 16 logic timing channels can be displayed simultaneously. Digital and analog events are aligned in time so the user can easily relate cause and effect in difficult mixed-signal, digital and analog troubleshooting situations. Specifications:
Integrated 4 scope and 16 timing channels
4 Mpts memory standard, up to 128 Mpts optional memory
1mV/div to 5V/div (1 Mohm) Sensitivity
1mV/div to 1V/div (50 ohms) Sensitivity
Simple, analog-like front panel with Windows(R) GUI
