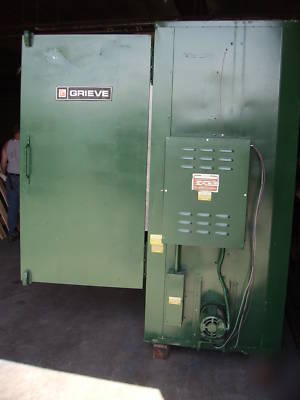

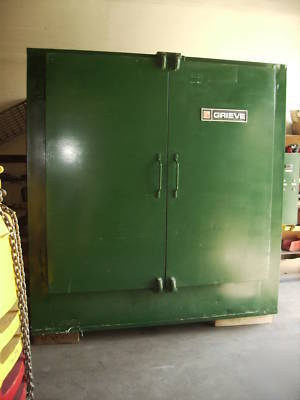

Used grieves batch oven 5.5 ft w x 5.5 ft ht x 2.5 ft d


USED GRIENVES OVEN TOTALLY ELECTRICALLY RECONDITIONED

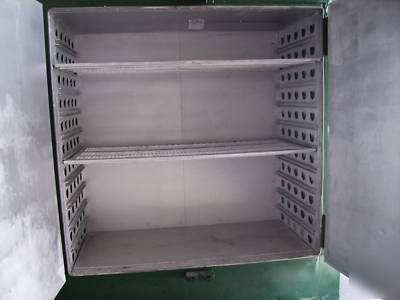

THE OVEN INSIDE WORKING DIMENSIONS ARE 5.5 FT WIDE X 5.5 FT HEIGHT X 2.5 FT DEEP WITH SHELVES AS SHOWN. ALL ELECTRICAL WITHIN THE OVEN INCLUDING CONTROL PANEL, DIGITAL CONTROLLER, CONTACTOR, WIRING AND DEVICES ARE NEW CONDITION AND REPLACED THE ORIGINAL ELECTRICAL DEVICES.

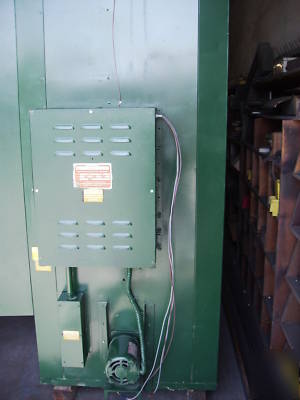

The control panel has all UL LISTED componets and devices including lights and switches, contactors and fuses for motor overload protection. . The digital controller is a Dwyer fInstruments rated from 0 to 999 F degrees. Standard "J" wire temperature sensing is standard design. Unit is designed for 230v, 3-phase service with (3) heating rods each rated 3.6 kw for a total power of 10.8 kw. The heating total amp draw at 230v, 3-phase is 26.13. Oven total amps with motor is approximately 30 amps .
We can also offer this oven system and can provide a complete powder coat line consisting of the oven, powder or collection booth,to your respective requirements, powder gun, and a biomediation wash system such that the dirty, oily water is equalized such that the wash oil is converted to a non-hazardous waste and doesn't require hazardous waste removal since the oily water does not go down the city drain.
