> Proto 6212 torque multiplier

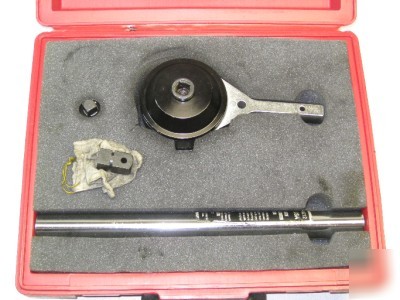

Proto 6212 torque multiplier
FEMALE INPUT SQUARE DRIVE (IN.)
MALE OUTPUT SQUARE DRIVE (IN.)
For Use With Torque Wrenches And Heavy Duty Power Or Impact Sockets, Not For Use With Power Drive Tools
* Micrometer Torque Wrenches and Multipliers
* Low-profile fixed and ratchet head allows access to tight spaces.
* Ratchet head has strong internal switching mechanism for long life.
* Calibrated to Plus or Minus3% CW and Plus or Minus6% CCW
* Certified mechanical horizontal calibration meets TO33K6-4-2193-1
* Noncertified manual vertical calibration meets ASME B107.14M-1994
* Audible click when desired torque is reached
* Automatically resets for next use
* Torque multipliers have Plus or Minus5% accuracy
Torque Multiplier, Effective Multiplication 6.01:1 +/-5%, Input Drive 1/2 Female Square Inches, Gear Ratio 6.33:1, Output Drive 3/4 Male Square Inches, Gear System Single Stage Planetary, Maximum Rated Input 200 Foot Pounds, Maximum Rated Output 1200 Foot Pounds, Angle of Turn Protractor 5 Increments Degrees, Length 20 Inches
