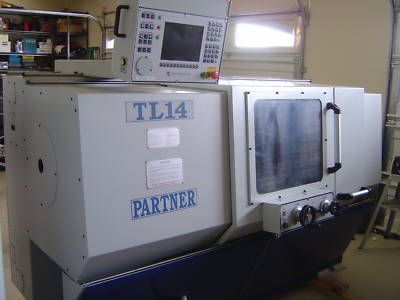

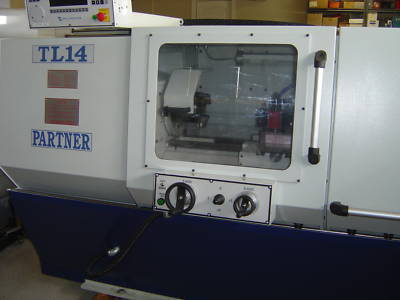

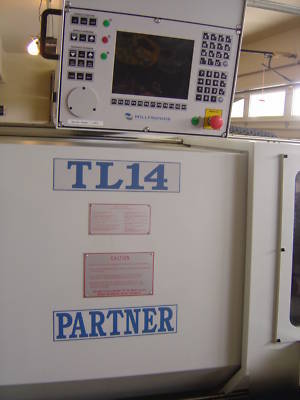

Cnc lathe tl-1440 milltronics (hardly used)
Type: CNC 2 axis programmable control
Travel (X Axis) Cross Slide: 7 / 178 mm
Travel (Z Axis) Long Slide: 30.5 / 775 mm
Ball Screw Size, Grade C5: X 20mm / Z 40 mm
Ball Screw Pitch X axis / Z axis: 5 mm / 10 mm
Maximum Weight of Part with Chuck No Center: 50 lbs. / 23 kg
Maximum Weight of Part with Chuck with Center: 500 lbs. / 230 kg
Maximum Weight of Part with Centers and Steady Rest: 1000 lbs. / 460 kg
Closed Loop Vector Spindle Drive
Horsepower 1 Minute / 30 Minutes: 15/10 11/7.5 kw
Spindle Nose Type: Camlock D1-5
Constant Surface Feature and Threading

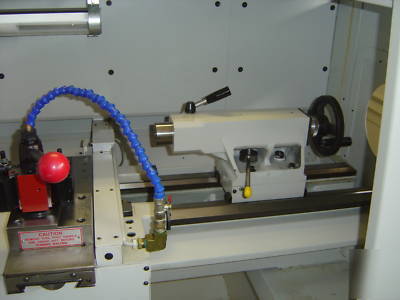

Tailstock Quill Travel: 5.5 / 140 mm
Tailstock Quill Diameter: 1.875 / 47 mm

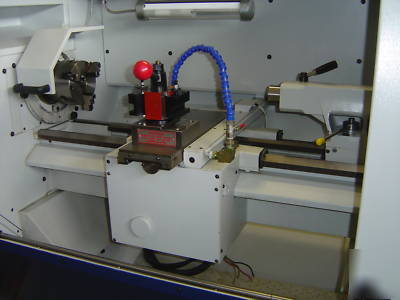

Dorian Quadra Post (QTIP 35): 3/4"/ 20 mm
Steady Rest Brass Tips: 1/4 5 / 6 127 mm
Rapid Traverse: 300 ipm / 7.6 mpm
Feedrate Range: .1-100 ips / 2.5 2540 mmpm
Position Accuracy: +/-.0004 / .010 mm
Repeatability: .0004 / .001 mm
Thrust, Machine Duty Rating: X: 800 lbs / 360 kg Z: 1600 lbs / 725 kg

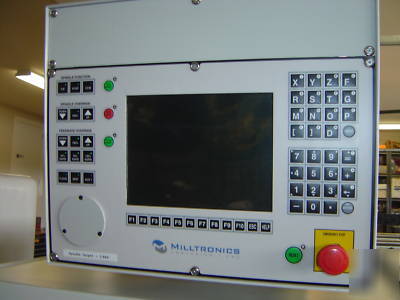

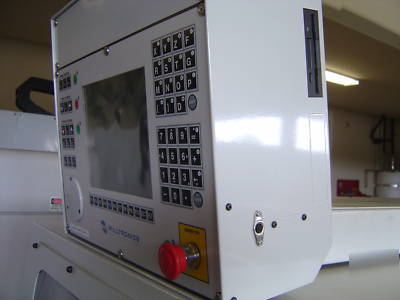

Conversational & G/M Code with Full Graphics
Turning, Facing, Grooving, Tapping and Boring Cycles,
and User-definable Macros with Trig Help
Constant Surface (RPM changes with radius) and
Feed/Rev. (IPR) with Threading Cycles
Pattern Repeat, Chamfering, Radius Prog. Assist with
Dual Handwheel Station for Selecting Teach, Manual or
6 Mb Virtual Disk / DCN buffer

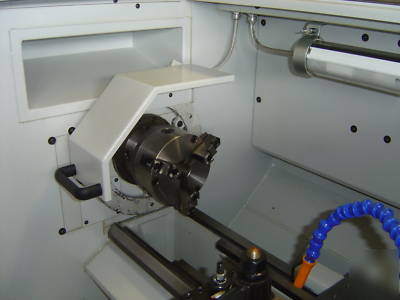

Automatic Home Sequence, Chuck Guards, Safety Switch
Full Enclosure with Sliding Doors and Safety Switch

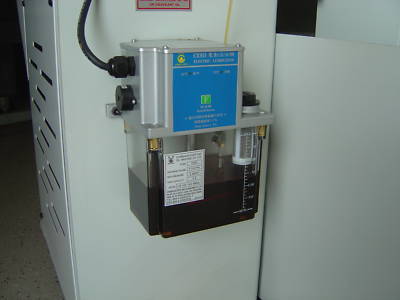

Auto Metered Lubrication with Low Lube Fault
1/8 Horsepower Flood Pump Option
Flood Coolant Capacity: 25 gal./ 90L

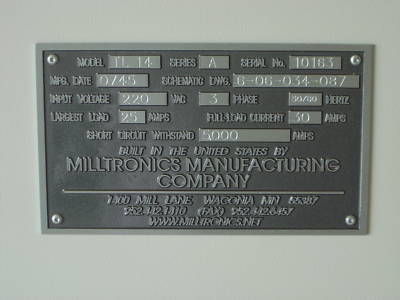

Power 208-240 VAC, 50-60hz, 3 Phase
Machine Weight: 4000 lbs / 1800 kg
Footprint: Length 93" Depth 60" Height 75"
Machine is in excellent condition, like new, hardly used, very low hours.
Primarily used for aluminum prototype work.
All original manuals are included.
