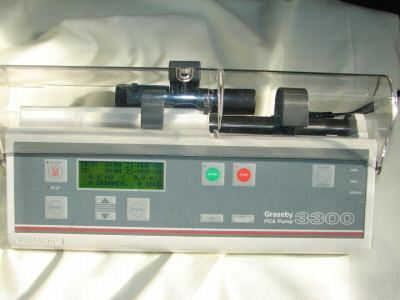

Graseby 3300 syringe pump - excellent condition
The Graseby 3300 gives you control over which features are made available, allowing faster, simpler control of regular infusions.
The Graseby 3300 is suitable for a range of applications from routine ward use to neonatal infusions.
* PCA (Patient Controlled Analgesia), Patient Activated Timed and Continuous Infusion Modes
* Volume (ml) and Mass Units Infusion Programming
* Pneumatic Patient Handset (Dose Cord)
* Volume, Mass and Demand Totalisers
* Patient History printing while infusing
In good condition and works well garanteed if not working we will refund or replace it for you
Nominal size: 325 mm x 195 mm x 115 mm (with pole clamp fitted and plunger clamp closed.
Weight: Not exceeding 3.5 kg including batteries and pole clamp.
Concentration: 1 g/ml - 99.5mg/ml.
Limits: 0.2 to 30 ml for 50 ml syringe
0.2 to 5.0 ml for 30 ml syringe
0.2 to 3.0 ml for 20 ml syringe
STAT rates: 200ml/hr for 50ml syringe.
100ml/hr for 30-35 ml syringe.
220-240v or 100-120v, 50-60Hz.
Sealed lead acid (Cyclon). Rechargeable, 3 off.
All programmed values are retained following power off or AC failure.
Approximately 8 hours when fully charged and under normal operating
BD Plastipak 20ml, 30ml and 50/60ml.
Braun Omnifix 20ml, 30ml and 50/60ml.
Braun Perfusor 50ml (optional, a conversion kit will be required).
Terumo 20ml, 30/35ml and 50/60ml.
default setting is BD syringes
The delivery volume is accurate to within 2% over a complete syringe length, excluding the start-up time.
The pump gives an occlusion alarm if the force on the syringe plunger is between 4.5 and 5.5 kg. It is possible to adjust this force, e.g. if a BD
50 ml syringe is used the maximum occlusion pressure will be 725mmHg.
-40 to +70 C, 30 to 90% Rh, 700 to 1060 hPa.
+5 to +45 C, 30 to 75% Rh, 700 to 1060 hPa.
D-type 9-way connector, RS232 serial interface.
Item is also including a key for back lock,
POSTAGE AND PACKING COSTS: 18 UK DELIVERY WITH ROYAL MAIL PARCEL DELIVERY
