Osram electronic ballast for T8 tube 3X18W / 4X18W QTP8

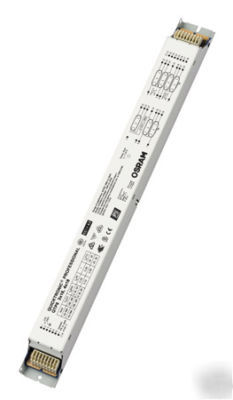

OSRAM ELECTRONIC BALLAST For T8 tube 3x18W / 4X18W QTP8
"Osram Brand" - OSRAM is one of the two largest lighting manufacturers in the world. Light from OSRAM shines in about 150 countries. With sales outside Germany accounting for 88 % of total turnover and a sales presence on every continent, we are a true global player.
Lamps and lighting systems from OSRAM provide the basis for a beautiful view of things, ensure safety and comfort, allowing for the efficient use of resources. For more than 100 years, OSRAM has been "passionate about intelligent light". As a globally operating company, we also explicitly encourage socially and environmentally responsible policies around the world - as well as sponsoring art and culture at home and abroad.
* "Fluorescent lamps-ECG - T8 - not dimmable - PROFESSIONAL QTP8"
* Supply voltage: 230 to 240 V
* Mains frequency: 0, 50 to 60 Hz
* Lamp start: Lamp start within 2 s with optimum electrode preheating. If there is a emporary interruption in the power supply (< 0.5 s) the lamp will start within 0.3 s
* The battery voltage may drop to 154 V. The lamps must be ignited at over 198 V
* Same luminous flux with direct and alternating current
* Single-lamp operation possible for 2 lamp ECGs
* Automatic restart of replacement lamps
* Energy Efficiency Index EEI = A2
* Approval marks: ENEC 10 sign, VDE sign, EMV-sign
* Lamp operation to EN 60929
* RI suppression: to EN 55015, EN 55022
* Line harmonics: to EN 61000-3-2
* Three or four-lamp versions can be used for emergency lighting (DC operation)
* Design / version : ECG standard
* Standards : acc. to EN 55015, CISPR 15 | acc. to EN 61547 / IEC 61547 | acc. to EN 61000-3-2 / IEC 61000-3-2
* Model: QTP8 3X18 ; 4x18/230-240
* Technical - Electrical Data
* Operating frequency : 45 ... 60 kHz
* Mains frequency : 50-60 Hz
* TH full width at half maximum : 210 s
* Lamp wattage : 3x16W / 4x16W
* Nominal voltage : 230-240 V
* DC voltage : 154...276 V 1)
* Max. no. of ECGs on circuit breaker 10A : 17
* Dielectric strength : 300 V - permanent / 320 V - 48 h / 350 V - 2h
* Technical - Light Technical Data
* Luminous flux : 3x1300 lm / 4x1300 lm
* Mounting hole spacing, length : 415 mm
* Maximum casing temperature in the event : 110 C
* Maximum operating temperature at the Tc : 75 C
* Ambient temperature range : -25 ... +55 C
* Storage temperature : -40 ... 85 C
* Relative humidity : 5 ... 85 %; max. 56 d/y at 85 %
Cater to Tube Watt: 3x18W ; 4x18W
Unit Price:US$381.35/12pcs
Remark: COLOR MAY SLIGHTLY VARY FROM ORIGINAL PICTURE. PLEASE KINDLY UNDERSTAND.
Any further enquiry, pls don't be hesitate to contact me via ****@yahoo.com.hk"
~Delivery Time : 7 - 14 business days normally but may be sometimes about 24 business days for some countries.
