New dental lab equipment flexible denture machine m

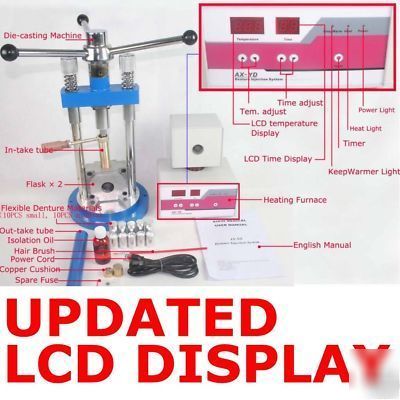

Dental Lab Flexible Denture Machine
FDA Compliant, CE Certification
Pass ISO9001 Quality Certification
LCD display makes machine more precise to control
100% Stainless Steel Reinforced and thickened machine body make longer life time and transportation absolutely to be safer
Built heat dispersed fan to reduce all electronic component's temperature
Adopt Japan imported advanced motherboard and microchip which not only makes machine high success rate,also make longer lifespan
Powerseller Satisfacation guaranteed or the money refund
Flexible Denture Machine is the equipment which specializes in making flexible false tooth, designed and produced by our company at the first time. It is the crystal of many years clinic experience. It featured simple and reliable operation, long lifespan, high quality, high success rate and so on.
Rating Voltage: 220V 50HZ and 110V 60HZ (We stock item for the country all over the world)
Available working hour modulation: 9 ~13 minutes
Environmental temperature: -5 -45
Environmental comparatively humidity: 90%
No corrosive gas in ambient air
Die-casting machine package size: 65cm X 36cm X 35cm
Heating furnace package size: 57cm X 38cm X 30c
Package Weight: Heating machine: 16.5KG Pressure machine:23.5KG
Fix the die-casting machine on worktable (or cement table) with 4pcs bolts. The height of the table should convenient to operation.
Put the heating furnace is laid next to die-casting machine, the distance between the two units should be close enough for convenient operations
Before adjusting, adjust the temperature to 287 and the heating time to 11 minutes.
To connect the power and turn on the power switch , startup time controller button,when the device give an alarm in the pre-set time and the fluctuation of the temperature is not exceed 10 after counterpoised , it proved that you bought a qualified flexible denture machine.
Before operating the machine, you should screw down the nut of the spring on two stand poles of die-casting machine and put the flask on the base of the die-casting machine.
At first, using hair brush to smear the inner intake tube with isolation oil, and then insert it in heating furnace, set the temperature to 287 and heating time to11 minutes.
Connect the heating furnace to a power supply, preheating at least 20 minutes. When preheating, it is normal for the temperature to go above 287 , so no adjustment is needed.
When the temperature becomes stable (variation within 10 between displayed temperature and pre-set temperature is considered normal), use hair brush smear the empty aluminium cartridge and copper cushion surface with isolation oil, then put the cartridge into intake tube, and then put the false tooth materials into cartridge (beaded edge inby), and then put the copper cushion (put in the big copper bar for medium size cartridge, put in both copper bars for small size cartidge)
After the false tooth materials put into heating furnace, turn on time controller button. The buzzer will alarm after heating 11 minutes, then user can take out the intake tube and put it on flask to compress. After compress 2 minutes, the intake tube can be unbolted.
Safety protection device and Cautions
This machine has a grounding protection. Note that it must be grounded while using
After compressed the materials, there might be some material left in the cartridge holder, it can be pushed out by the die-casting machine, if not, users can start the heater for easier removal
So if your item has any problem with 24 months, please contact us, we are always here. we can exchange a new one for you.
