Baileigh industrial cs-225M cold saw

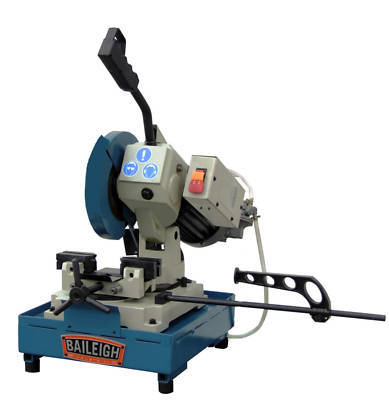

Baileigh Industrial CS-225M Cold Saw
The CS-225M cold saw is the perfect complement to any fabrication shop for cutting tubing, pipe, angle iron, solids and much more. This saw has a heavy solid steel base with a coolant reservoir that has four rubber feet to reduce vibration on any bench top. The main machine base that houses the vise and pivot point for the cutting head is made from a very rigid cast iron frame.
This bench top circular cold saw comes standard with a self centering vise that extends blade life since the starting point and pitch remain the same on different size materials. The self centering vise comes standard with diamond cuts in the jaws to hold the center of the material. There are jaws that hold the material on the feed side and cut material side so blade life is extended and teeth don t get chipped when the cut is complete. A material stop is included for multiple repeatable cuts. This Baileigh coldsaw can miter 45 degrees left making it perfect for miter cuts on roll cages, hand railing, and much more.
The cutting head has a powerful 1-hp motor that requires 110 volts of 60 hertz power to turn the 225mm (9 ) blade at 50 rpm. This is the perfect cold saw to take to job sites due to its power requirement and size. To conduct a cut simply place the material in the self centering vise and clamp the material. Pressing the trigger switch starts the blade turning and the coolant system. Pull the cutting head down into the material until the cut is complete, at which point you would release the trigger switch to stop the blade and coolant system, returning the head the return position.
http://www.bifabuk.co.uk/images/3.gif
http://www.bifabuk.co.uk/images/1.gif
http://www.bifabuk.co.uk/images/5.gif
Includes a flood coolant system, (1) blade 200 tooth count, material stop.
