Agilent E6381A tdma pcs base station t/s w adapter set

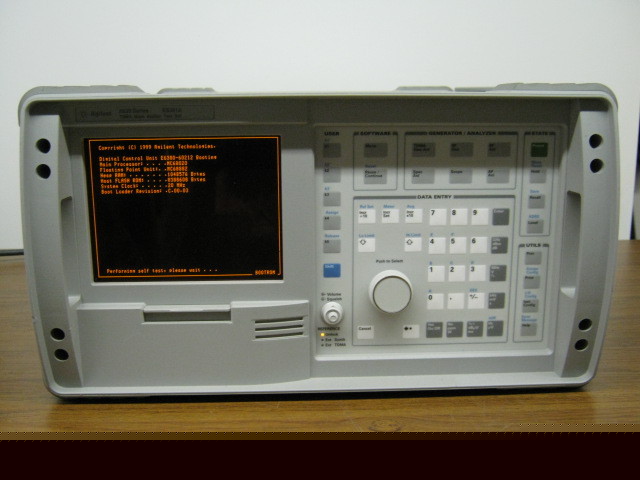

Agilent E6381A TDMA PCS Base Station T/S w Adapter Set
Powers up, passes Power On Self test (POST)
The Agilent Technologies 8935 Series E6381A TDMA base station test set is a full-featured, onebox test set designed to meet the needs of installation teams, service providers, and network equipment manufacturers.
* Cellular and PCS frequency coverage in one box
* Analog and TDMA test capabilties
* Dedicated, one-button user interface keys
* Automation software to increase measurement repeatability and enhance technician efficiency
* TDMA Signal Generator Frequency Range: 824 MHz to 894 MHz, and 1.850 GHz to 1.910 GHz (usable 800 MHz to 1000 MHz, 1.7 GHz to 2.0 GHz)
* TDMA Analyzer Frequency Range: 30 MHz to 1000 MHz and 1.7 GHz to 2.0 GHz
* Signal Generator RF Frequency Range: 400 kHz to 1000 MHz and 1.7 GHz to 2.0 GHz
* Spectrum Analyzer Frequency Range: 400 kHz to 1 GHz and 1.4 GHz to 2.0 GHz
* RF Power and Analyzer Measurements
* Tracking Generator frequency 400 kHz to 1 GHz, 1.7 GHz to 2.0 GHz
* Oscilloscope frequency range: 2 Hz to 50 kHz (3 dB BW)
* Audio Frequency Measurement capabilities AM/FM/SWR
