Rohde & schwarz zpv vector network analyzer

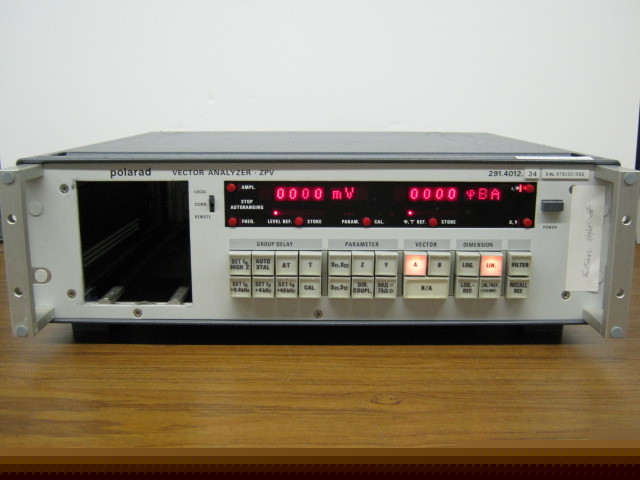

Rohde & Schwarz ZPV Vector Network Analyzer
The ZPV Vector Network Analyzer is designed for critical applications in control engineering and for crystal, antenna, amplifier, and filter measurements.
* Basic unit consists of a vector voltmeter with two measurement channels measuring voltages by both amplitude and phase, and a microprocessor-controlled analyzer section in which the measured voltage vectors are evaluated, normalized, and converted to the required complex quantities
* The ZPV-E3, when used with the ZPV, allows vector measurements, two-port and group-delay measurements in 50 coaxial systems over a wide frequency and amplitude range
* 300 kHz to 2 GHz frequency range, usable to 2.5 GHz
* Dual inputs, 50 impedance
* Sensitivity on channel A is 1.2 mV; channel B is 5 V
