Ranco etc electronic temp. control w/thermistor sensor

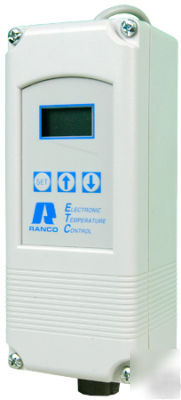

Ranco ETC-111000-000 Electronic Temperature Control w/Thermistor Sensor
Ranco Single Stage ETC Temperature Control model ETC-111000-000 with Ranco Thermistor Sensor model 1309007-044ETC and Installation Instructions
Unlike many electronic controls, the ETC is simple to install and set up. One finger is all you need to program it. The standard digital display and keypad allow the user to adjust the temperature settings with 1 degree resolution. Setpoint temperature, differential and mode of operation (heating or cooling) can all be selected using the keypad and display.
When not in the programming mode, the display gives a constant readout of the sensor temperature. Annunciators on the liquid crystal display also indicate when the relay is energized.
The ETC is capable of remote temperature sensing up to 400 feet away from the control when using standard 22 gauge sensor wire.
Temperature Setpoint Range: 30 to 220 Degrees F
Differential Range: 1 to 30 Degrees F
Input Power Requirements: 120/208/240 VAC
Sensor: Thermistor, 2" long x 1/4" Diameter, with 8 cable
Control Ambient Temperatures: Operating (20-140), Storage (40-176)
Ambient Humidity: 0 to 95% RH, non-condensing
Dimensions: 6.52" high x 2.7" wide x 2.48" deep
Agency Approvals: UL Listed, CSA Certified
