Nikon automatic level as-2C free priority shipping
THIS UNIT IS USED IN GREAT CONDITION, HAS WRITING ON THE CASE ITSELF. THE INSTRUMENT AS WELL AS THE CASE ARE BOTH IN GREAT WORKING CONDITION. THE FOAM INSIDE OF THE CASE IS IN GOOD CONDITION, IT IS FIRMLY IN PLACE AND THE CASE LATCHES SECURELY.

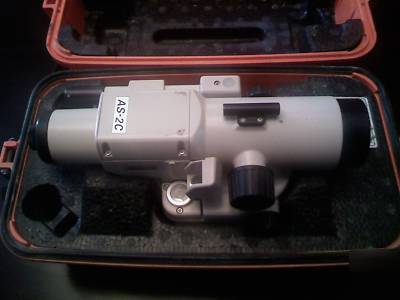

What you see in the photo is exactly what you will receive
Key Features for AS-2C Automatic Level
Waterproof- The airtight, gas-filled (dry nitrogen gas) design of the telescope is perfect for wet or humid environments.
Nikon's unique automatic compensator employs a wire-suspended pendulum and an air damper to prevent magnetic interference. And the wide compensation range ( 12' for AS-2C) makes it quick and easy to set up.
Rugged construction provides excellent resistance to shocks.
Highly accurate 1km double run leveling- AS-2C 0.8mm w/o micrometer, 0.4mm w/micrometer
AS-2C features horizontal circle. Direct readings are graduated to 10' and can be estimated to 1'.
The model AS-2C employs a 34x high-magnification, high-resolution telescope to assure sharp images even in poor light.
Optional high- and low-power eyepiece lenses- AS-2C High-power 43x, Low-power 22x
Improved minimum focusing distance, down to 1m/3.28 ft., for better performance in tight spots.
Endless horizontal fine drive ensures smooth, precise pointing and angular measurement.
To ensure rapid rotation, a new friction break does away with the need for clamps.
Standard optical sight lets you find your target with precision and ease.
A mirror with a pentaprism lets you view the circular bubble as an erect image while setting up and sighting.
Attaches to both flat- and spherical-head tripods.
Specifications for AS-2C Automatic Level
Minimum focusing distance: 1.0m/3.28 ft.
Standard deviation in 1km double run leveling: Without micrometer 0.8mm; with micrometer 0.4mm
Built-in automatic compensator: Type- Wire-hung, air; Compensation range- damper ; Setting accuracy- 12', 0.3"
Weight: Instrument- 1.80kg/4.0 lbs..; Carrying case 1.80kg/4.0 lbs.
