New , gemu flow transmitter, e-module 3020
FLOW TRANSMITTER FEATURING NON-METALLIC INTERNAL COMPONENTS FOR THE MEASUREMENT AND TRANSMISSION OF VOLUME FLOW FOR INERT AND CORROSIVE LIQUIDS.
THE FLOW TRANSMITTER PICKS UP THE ENTIRE VOLUMETRIC FLOW AND IS THEREFORE INSENSITIVE EVEN IN THE EVENT OF AN UNEVEN FLOW PROFILE WITHIN A CROSS-SECTION. THERE IS NO NEED TO ADHERE TO SPECIAL MOUNTING POSITION OR OTHER INSTALLATION PARAMETERS. A MOUNTING DISTANCE OF 5 TIMES DM ON THE INLET AND OUTLET SIDE IS SUFFICIENT.
COMPONENTS COMING INTO CONTACT WITH THE MEDIUM ARE MADE OF PVDF, WITH THE SHAFT AND BEARINGS IN A CERAMIC MATERIAL. THE HOUSING IS MADE OF PVC.
THE ELECTRONIC EVALUATION SYSTEM INCLUDING THE SENSOR IS MECHANICALLYATTACHED TO THE TURBINE HOUSING BY MEANS OF STAINLESS STEEL SCREWS. ROTATION IS PICKED OFF INDUCTIVELY, WITH THE SPEED OF THE ROTOR PROPORTIONAL TO FLOW. THE TURBINE CAN BE QUICKLY, RELIABLY AND SIMPLY MOUNTED AND REMOVED BY MEANS OF A UNION WITH DIN BUSHES.
MANUFACTURER: GEMU VALVES, INC.
MFG PART/ORDER NUMBER: TYP 3020 50D 78204 S 322 25000

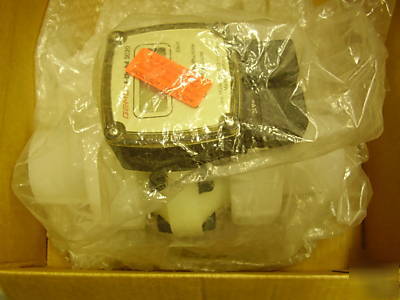

THIS EQUIPMENT IS NEW IN ORIGINAL BOX AND SEALED AIRTIGHT FOR CLEANROOM USE.
