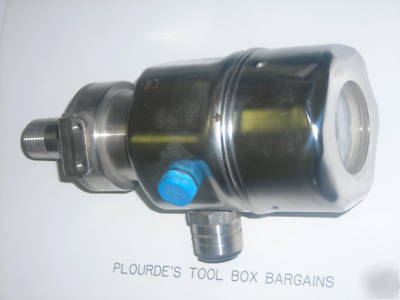

New endress hauser pressure transducer PMC41-RC11P6C11N
New Endress & Hauser Cerabar M Pressure Transducer, 0-10 Bar (0-150 psi)
R = Approval For non-hazardous areas
C1 = Housing; Electrical connection: 316L SS; thread NPT 1/2, IP 66
1P = Sensor range (for overpressure) 0 to 10 bar, 1 MPa (150 psi)
MWP (maximum working pressure) 26.7 bar, 2.67 MPa (400 psi)
OPL (overpressure limit) 40 bar, 4 MPa (600 psi)
6 = Calibration; Unit 0.2% sensor range; psi
C = Output; Operation 4 to 20 mA analog; display bar graph
1 = Additional option: Basic version
1N = Process connection: Threaded 1/2" Male NPT, 1/4" Female NPT, 316L SS (CRN)
