> Hp agilent 6621A dual precision system power supply 80W
Hp agilent 6621A dual precision system power supply 80W
Free online user/service manual downloads!
HP Agilent has just raised the prices of their current production 6621A precision
system power supplies to over $7500.00. They also have become very hard to find
at reasonable prices in clean used condition.
Offered here is an aerospace surplus 6621A that we have carefully cleaned and tested
and refurbed. Dual 80 watt precision panel or GPIB programmable outputs can be set
to 0 to 7 volts at 10 amps or 0 to 20 volts at 4 amps. Programming accuracy is 19 millivolts
voltage and 100 milliamps current. Readback voltage accuracy is 0.05 percent.
5 inch high rackmount. We include a pair of rack mounting ears, a standard 110 volt line
cord, two special relay output connectors, and four new output sensing jumpers. Manuals
available for free download as noted below.
Includes option 6621A-750. Relay control and discrete fault indicator/remote inhibit port
Tested. Passes startup specs and produces output voltage. Believed fully functional,
guaranteed servicible. May include minor cosmetics on top cover, display filter, and
elsewhere. The fan was noisy but quieted down considerably after we cleaned and
oiled it. Internal cleanliness suggested fairly low use hours.
You can click here for HP Agilent 6621A technical data. Replacement parts and service are available through the same link..
You can click here for a free, genuine, and original 6621A User/Service Manuals.

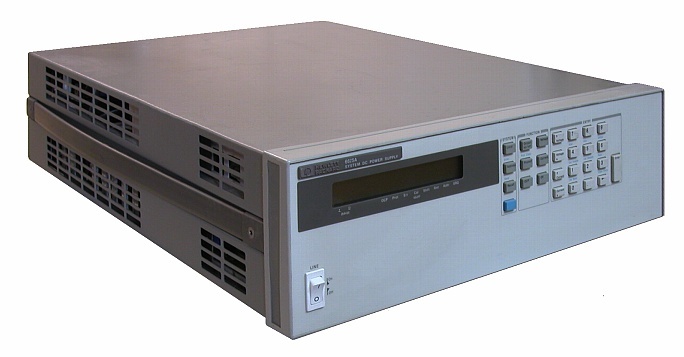

Image shown is of a comparable unit. Power supply offered here includes
rackmount ears and carrying handles preinstalled.
