Bird directional power sensor 0.3-1000 watts 1000 mhz


BIRD- DIRECTIONAL POWER SENSOR-

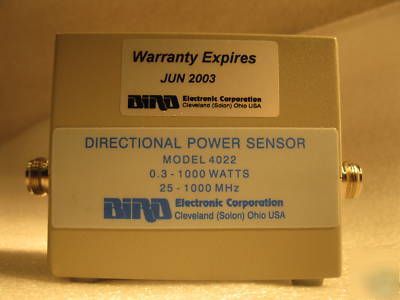

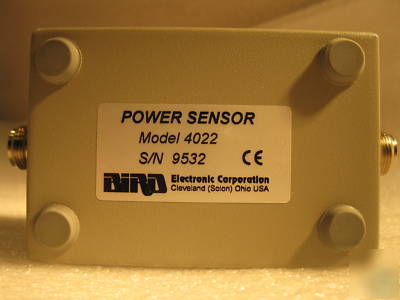

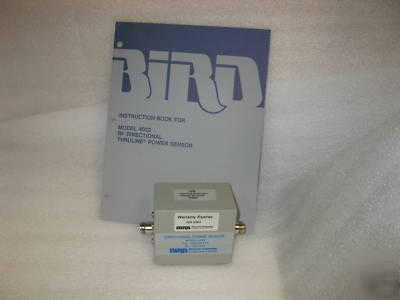

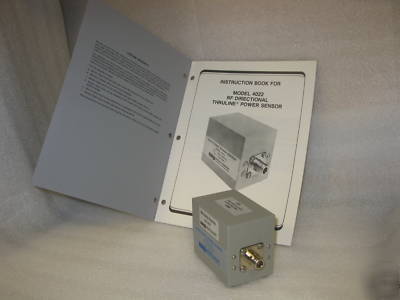

MODEL 4022 RF DIRECTIONAL THRULINE POWER SENSOR
* 25 - 1000 MHz, 300mW - 1kW, 3% Accurate, Power Sensor
* Full-Scale Accuracy +/-3% for applications requiring accurate forward and reflected power measurement
* Direct plug-in operation with the industry-standard Bird Model 4421 RF Power Meter
* Maintains calibration for 12 months with Model 4421A500 Calibration Kit
* Quick Change Solderless Connectors (Type N(F) Provided)
The Bird 4020 Series Directional Power Sensors provide cost-effective accuracy for maintaining critical RF systems. Only 4 models are required to cover the frequency range of 1.8 MHz to 1 GHz and power from 300 mW to 10 kW.
* Accuracy: 3% of reading from rated max. range down to 30% of full scale on the most sensitive range.

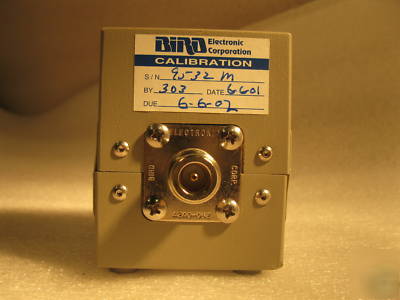

* Calibration Cycle: 12 months. Performance before and performance after data to be supplied for units.
* Frequency Range: 25 MHz - 1000 MHz

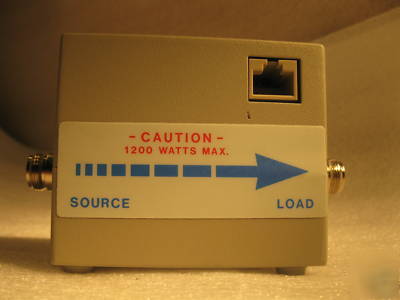

* Power Input: 300 mW to 1 kW (1.2 kW Max)
