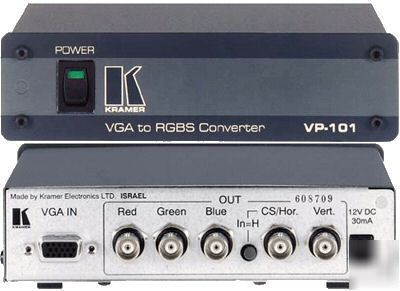

Kramer electronics vp-101 vga svga to bnc converter
Manufacturer: Kramer Electronics Model/Part #: VP-101
The Kramer VP-101 is a high performance VGA to BNC converter. It is designed to allow a single VGA, SVGA, or XGA source to be connected to a compatible monitor, projector, or other receiving device which requires an RGBS or RGBHV signal on BNCs. Bandwidth exceeding 300MHz ensures transparent performance, even with the highest resolution VGA modes. Note that the VP-101 does not perform any scan rate or resolution conversion.
Correct buffering and isolation is provided. In the composite sync mode, the regenerated sync maintains negative polarity as required by most RGBS devices. The input and outputs are AC coupled for maximum compatibility. A 12VDC power supply is included for typical operation. It is housed in a rugged, compact desktop enclosure, but two can be rack mounted in two vertical spaces of a standard 19 rack using the RK-50R kit.
