2 - ilsco 2 port insulated tap connectors pbtd-6-500

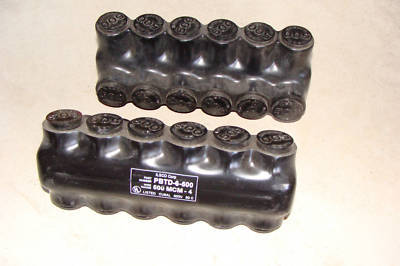

Sale is for two New ILSCO PBTD-6-500 insulated two port tap connectors for copper or aluminum conductors up to 500mcm cable.
* Broad wire range: 750kcmil-14
* UL listed and CSA certified for 600 volts, 90 C
* Dual rated for copper or aluminum conductor
* Cold temperature rated to -45 C
* High dielectric strength plastisol is chemical resistant
* Removable port & screw plugs
* Per NEC Article 310-16 Allowable Ampacities are as follows: # 4 - 95 Amps, 1/0 - 170 Amps, 3/0 - 225 Amps, 250 - 290Amps, 350 - 350 Amps, 500 - 430 Amps, 750 - 535 Amps
