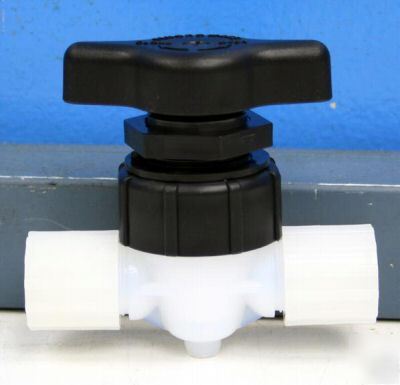

New entegris BV6-12F-01 magnaflo plug valve
NEW Entegris BV6-12F-01 Magnaflo Plug Valve (042507705240)
New Entegris BV6-12F-01 Magnaflo Plug Valve
* Straight through flow path
* All wetted components of high purity PFA and PTFE materials
* Standard panel mounting configuration
* Maximum Continuous: 100 PSIG (689 kPa) at ambient temperature
* Peak Pressure For: 150 PSIG (1034 kPa) at ambient temperature
* Maximum Continuous: 200 F (93 C) at 25 PSIG (172 kPa)
* Peak Temperature For: 400 F (204 C) at 10 PSIG (69 kPa)
* Materials: All wetted parts are PFA and PTFE. Additional materials used for non-wetted parts include PVDF, PEEK and PTFE u-cup with Viton energizer
