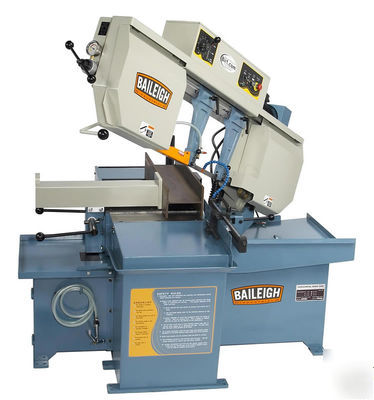

New baileigh bs-20M single miter horizontal band saw
Baileigh BS-20M Single Miter Horizontal Band Saw
Capacity Round (90 /45 /60 ) 13 /11 /6.3
Capacity Square (90 /45 /60 ) 13 /11 /6.3
Capacity Rectangular (90 /45 /60 ) 13 x18 /13 x11 /10 x6.3
Blade Size (H/W/L) 1 / .035 / 162.59
Blade speed (fpm) 92/137/198/256
The BS-20M 13" x 18" single miter Manual Band Saw has a 13'6" L x 1" x .032" thick blade. The BS-20M has extremely heavy-duty cast iron guide arms and wheels. This saw has a great working height of 31" and has a pre-loading and post cutting table that holds the in feed bar and the cut piece, allowing for straighter cuts and longer blade life.
* The BS-20M band saw uses a 1" band saw blade, making it an extremely accurate and fast cutting saw. Blades for this model can be sourced at your local industrial distributor. We recommend using good quality blades manufactured by Lenox , Starrett , or Wikus .
* The heavy cast iron saw head provides rigidity and swivels 0-60 degrees.
* Hydraulic descent feed or pressure can be adjusted by operator. This is important when cutting different size and different types of material.
* Powerful coolant pump cools blade and assists chip removal system. We recommend a petroleum based or synthetic based coolant that should be mixed 1:10 (coolant to water). These coolants can be sourced at your local industrial distributor.
* A broken blade tension device shuts down the machine incase a blade breaks.
* This is the perfect machine for cutting solids (round, square, or rectangles), tubing, angle iron and much more in angles up to 60 degrees. Perfect for the small to medium fabricator or job shop who needs to cut mild steel, stainless steel, aluminum, chromoly, brass, bronze, and even plastics. Fitted with the proper blade, this machine will provide years of profitable production.
The BS-20M is a Band Saw capable of cutting 13" OD and is the perfect saw for cutting at 90 degrees or miter angles. This saw can cut up to 13" x 18" material, meaning you get more value for your investment than with any other saw on the market. Quick releases allow the operator to change the miter angle in seconds. This band saw has four operating speeds, a miter head, and a hydraulic controlled descent device for perfect feeds and longer blade life. Our band saws are constructed of a heavy cast iron saw head and base and the blades are guided via a tight tolerance hardened roller bearings and accompanied by tungsten wear guides. Each band saw has a powerful coolant system and a broken blade tensioning device that shuts down the machine if the blade breaks. Of course guard doors are interlocked, so if someone opens a guard while the machine is running it will shut down the saw.
The BS-20 series band saw has a hydraulic descent for larger production runs that increases blade life and reduces operator fatigue. It has a hydraulic descent control device for the down feed, that is reset when the head is manually lifted. This metal band saw series can cut up to 13" OD capacities. This series of band saw requires 220V, Three Phase, 60 Hertz. The BS-20 horizontal band saw has a miter saw head that can swivel up up to 60 degrees. This series of horizontal band saw comes standard with a four drive speeds drive allowing the operator to fine tune the blade speed for the material they are cutting. The BS-20 metal cutting saw series requires a 1" wide saw blade by .032" wall thickness, making this series a very precise miter saw. These band saws offer more cutting capacity in a variable speed miter saw than any other saw on the market, for the investment.
