New 13,000 # steel dock board plate-forklift ramp-72X60

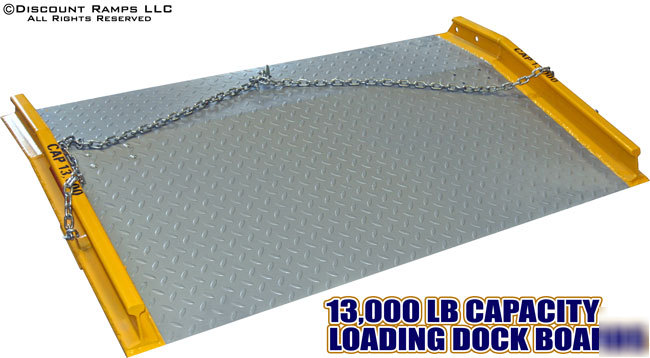

Brand New 13,000 lb. Steel Dock Board, 72" wide x 60" long.
steel dock board with curbs for commercial use
Click an image of the Dock Boards below to enlarge:
Loading Dock Board Side View Loading Dock Board Front View Loading Dock Board Forklift View Loading Dock Board Rear View on Forklift
13,000 lb capacity, reinforced steel diamond plate Dock Boards are designed specifically for forklifts up to 4,000 lbs. The high visibility, bright yellow welded steel curbs on each side help to line up forklifts during docking. Each Dock Board also features two underside stabilizer braces that line up with an existing loading dock to provide extra stability and keep the dock board safely in place during use. Included with the Dock Boards is a heavy duty chain and nose-clamp lifting system to easily move the dock board to and from the loading dock area. Dock boards are available in a variety of lengths, depending on application, in 60" and 72" widths. Its recommended to choose a dock board 12 to 18 inches wider than the widest load that will be on the board. To calculate the minimum dock board capacity required per application, multiply the fork truck lifting capacity times three.
Rise Calculation (click to enlarge)
Dock plate and board dimensions for selection.
* Heavy duty, reinforced steel diamond plate
* Bright yellow, high visibility welded curbs
* Lifting chain system from sides to dock board nose
* Rated Capacity: 13,000 lbs
* 4 Wheel Forklift Weight Rating: 4,000 lbs
* 3 Wheel Forklift Weight Rating: 2,500 lbs
* Dual underside loading dock stabilizer braces
* 1 Year Manufacturers Warranty
Pallet Trucks & Electric Forklifts - 14% Grade
