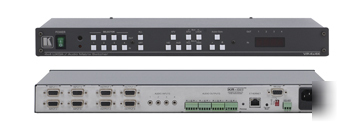

Kramer vp-4X4K video matrix switch hd hdtv router
The VP-4x4K is a high-performance matrix switcher for computer graphics video signals, with resolutions up to and exceeding UXGA, and balanced stereo audio signals. The unit can route any or all inputs to any or all outputs simultaneously.
* Delayed Switching - Up to a 3.5s (user selectable) delay for clean switching.
* Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
* ALL/OFF Controls - Sends one input to all outputs, can disconnect all outputs, or turn off individual outputs.
* Take Button - Executes multiple switches all at once.
* Front Panel Control Lock Out.
* Active Input Indication Reporting - Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
* Input and Output Audio Level Control.
* Flexible Control Options - Front panel, RS-485, RS-232 (K-Router Windows -based software is included), Ethernet, IR remote (included).
* Worldwide Power Supply - 100-240V AC.
* Standard 19 Rack Mount Size - 1U. Rack "ears" included.
This product replaces the VP-4x4 , VP-4x4XL
