Fadal vmc-15 cnc vertical machining center - 1995
Office: (770) 536 - 5584 Fax: (770) 536 - 5508 Cell: (770) 401 - 3572

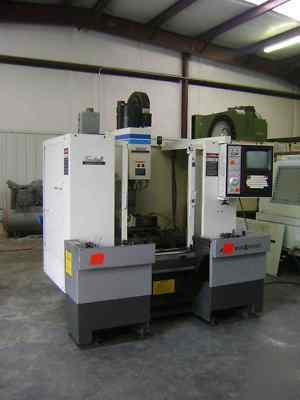

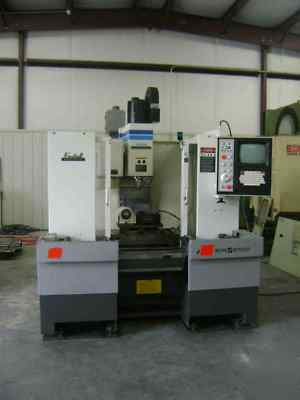

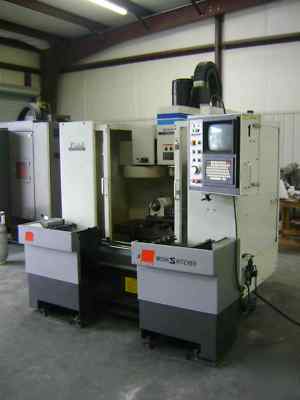

1995 Fadal VMC15 Vertical Machining Center
Table Working Surface................................. 29.5" x 16"
Table Load Capacity................................... 2,000 LBS
Longitudinal Travel (X-Axis).......................... 20"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 10 HP
Spindle Speeds Range.................................. 10- 7,500 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 92"
Approximate Machine Weight............................ 5,500 LBS
Click here to see a video of the Fadal VMC15 in action.
This machine comes with our 30 day return privilege and startup guarantee.
