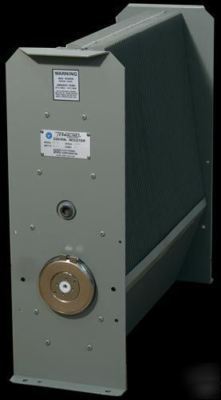

Bird 8921 5KW termaline rf dummy load coaxial resistor
Bird Electronics 8921 5000W Termaline RF Coaxial Dummy Load Resistor, Oil-Cooled with QC Type-N Connector
Specifications are from Bird-Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is in new or like-new condition. Various QC connectors available at an additional cost.
List Price is: $2,905.00 NEW from Bird
Input Connector: Bird Part Number: 4240-062, QC Type-N Female Connector Installed
Output Connector: Amphenol 2-Pin Male Connector, with mating Female cable connector attachment, Part Number: AN-3057-8.
Link to the Manual: Bird 8920 Series Termaline Coaxial Load Resistor Manual
* 8921 Termaline RF Coaxial Termination
* 5 kW, Oil-Cooled, QC Type-N Female
* Rugged load for high power transmitter applications testing up to 1 GHz.
* Oil-assisted (vented) convection cooling for safe, continuous operation up to 5000W full rated power.
* Simple but rugged design minimizes maintenance requirements.
The Model 8921 TERMALINE Load Resistor is a self-contained high-power 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under nonradiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 1 GHz.
Ambient Temperature Range: -40 C to +45 C
Frequency Range and VSWR: DC to 1 GHz at 1.1 max.
Load Coolant: 6 2/3 gal. (25.3 liters) silicone oil
Nominal Size: 30 27/32" L x 9 1/2" W x 25 13/16" H, (783 mm x 241 mm x 656 mm)
Operating Position: Horizontal only
Power Rating: 5000 W continuous
* Picture 6 - Input Connector
* Picture 7 - Output Connector (Male)
* Picture 8 - Output Connector (Female)
