12 x 24" okamoto surface grinder model acc-124N

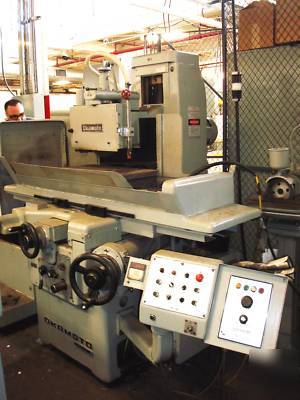

1 OKAMOTO MODEL ACC-124N SURFACE GRINDER
Okamoto Surface Grinder Hyraulic New in 1985
Maximum Grinding Length - 24"
Maximum Grinding Width - 12"
Longitudinal Travel Hydraulic - 29.5"
Cross Travel Hydraulic - 12"
Auto Incremental Downfeed Increments - 0.0001"-0.0015"
Max. Cross Travel Manual - 13.6"
Grinding Wheel Size - 12" x 1-1/2" x 5" Bore
Electrics - 230/460/60/3 Presently 230 Volts
Approximate Machine Weight - 6,000 Lbs
Approximate Machine Dimensions - 103"LR x 74"FB x 74"H
11-5/8" x 23-5/8" O.S. Walker Electromagnetic Chuck w/Controls
Incremental Automatic Downfeed
Automatic Sparkout up to 5 Passes
Manual Over-the-Wheel Wheel Dresser
Factory Wheel Guard Accepts Dust Collector Hose
Coolant System w/Magnetic Seperator
F.O.B. : ELK GROVE VILLAGE, IL
And must be added in addition to purchase price and freight charge.
Negotiated Also visit our website at
Need faster answers Feel Free to call us direct
(***)-338-7139 ask for Erik J. Myers
