> Pall 30" pleated filter cartridge - 10 micron - 12 lot

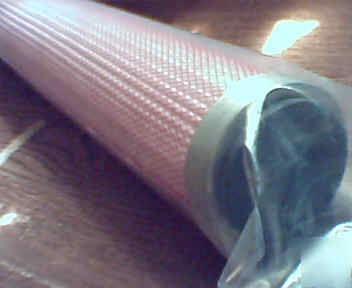

Pall 30" pleated filter cartridge - 10 micron - 12 lot
P/N: T8207925000 / DFN 10-30AE-1X
NEW in Factory Box - Case of 12
This is a case of 12 NEW PALL filters. They are unused in the original factory box. The box was still factory sealed when received, and was opened only to verify contents and take the photos. Each filter is still sealed in the factory plastic packaging, and individually boxed.
Here is some information from the manufacturer website:
DUO-FINE E SERIES Filter Cartridges
High Capacity Pleated Filter Cartridges with Microfiberglass Media
* Unique Microfiberglass media provides exceptional Dirt holding capacity for longer service life
* 304 Stainless Steel Center Core and End Caps for High Temperature Applications
* Small Diameter Fibers ensure High Flow rates at Low Pressure drops
* Filter Grade (90% Retention Rating by ASTM F-795 Test)
Recommended Change Out Differential Temperature:
Maximum Differential Pressure:
* (304 Stainless Steel Hardware) 75 psid (5.1 bard) @ 250 degrees F
All Duo-Fine E Series cartridges may be autoclaved for 30 minutes @ 250 degrees F under no load conditions. Cartridges with 304 stainless steel core and end caps may be steamed in-line at 250 degrees F for up to one hour. Do not reverse flow under steam conditions or damage to the filter may occur.
* Filter Media: Borosilicate Microfiberglass with Acrylic binder.
* Support Material: Spunbonded Polyester
* Hardware: 304 Stainless Steel
* End Configuration: DOE, 1" (2.54 cm) extended core (End Caps are epoxy bonded)
* Outside Diameter: 2 3/5" (6.6 cm)
* Liquid Service (by ASTM F-795 Test) @ 90% Efficiency - 10.0, @ > 99.9% Efficiency - 18.0
