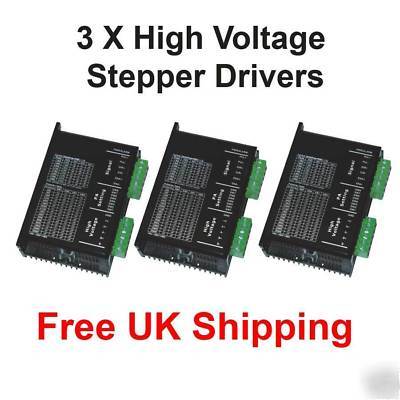

3 x high performance stepper motor driver - 5.2A, 70V
The PM752 is a high performance microstepping driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with lower noise, lower heating and very smoother motion as well as better high speed performances. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.
* High performance, cost-effective
* Supply voltage up to +75 VDC
* Self-adjustment technology
* Pure-sinusoidal current control technology
* Pulse input frequency up to 300 KHz
* TTL compatible and optically isolated input
* Automatic idle-current reduction
* 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR and CW/CCW modes
* Short-voltage, over-voltage, over-current protections
The PM752 has been specifically designed for applications such as X-Y tables, labeling machines, laser cutters, engraving machines and pick-place machines that require a high performance microstepping driver but need a lower price to gain a competitive edge.
