Usb hico magnetic credit card reader and writer encoder
3 track Hi-co & Lo-co Magnetic Card Reader and Writer Encoder With RS232-USB Converter and Blank Magnetic Card
Magnetic Card Reader and Writer

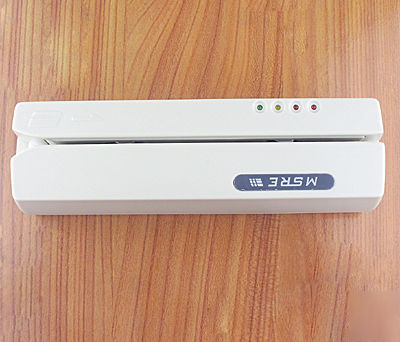

NEW Magnetic Card Reader/Writer For Lo&Hi Co Track 1, 2 & 3
MSRE206 can be operated easily with reliable performance. It is a perfect magnetic stripe read/write device for computer system in financial department.
It's manufactured at our ISO 9001-2000 certified factory, have best quality.
1). Communication: RS232 (cable included), USB 2.0( USB- RS232 converter included)
2). Reading/writing magnetic stripe cards complies with ISO 7811 / 1~6, ANSI formats
3). Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe) for track 1, 2 & 3
5). 5~35ips operational swipe speed of writing data
6). 5~55ips operational swipe speed of reading data
7). Input: 100-240VAC, Output: +24VDC+/-10%, 2.5A Max., external power adapter attached
8). Card thickness: 0.76-1.2mm
9). Writing and verifying data on single, dual, or triple track in one swipe
10). Programming software included for various read/write applications
11). Program software for DOS, Vista, Windows XP, 98, Me, 2000 and so on.
12). High/Low Coercivity encoding circuitry selectable on screen
13). Programmable leading bit, raw data, DMV/AAMVA, and user defined format
14). Compact size with dimensions of 210(L) x 62(W) x65(H) mm
15). Consumption: Typical 350mA Max. and 600mA plus for each writing track
16). Speed of pulling card: 10cm/s 100cm/s
18). Register density: 1/2/3 tracks 75BPI/210BPI is optional
20). Head life: Min. 500K swipes for both read/write head
21). Compatible with ISO7811/1~6 ANSI CUSTOM
22). Operation: 0 to 50 C, 15 to 85% humidity
23). Storage: -30 to 70 C, 10 to 90% humidity
24). Dielectric strength: 500VDC for 1 minute
Click here to download the User Manual, Specification, Demo Software 1, Demo Software 2, USB Driver, Coding for track 1,2 & 3
We provide two kinds of demo software:
1). 1 Brand New Magnetic Card Reader/Writer.
2). 1 CD includes Two kinds of Demo software, User Manual, Specification, Coding for Track 1 2 3, USB Driver.
3). 1 blank Lo-co magnetic card.
4). 1 blank Hi-co magnetic card.
5). 1 magnetic Head cleaning card.
6). 1 RS232 - USB converter and driver.
9). 1 Power Adapter + Cable (input 100-240V AC, output 24V DC)
10). 1 AC Power cable ( we can provide USA Standard, Euro Standard, UK Standard and AU Standard,that depends on the location of your country )
