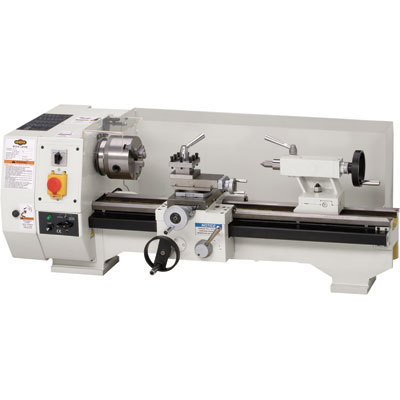

Shop fox lathe - 10IN x 20IN model# M1016 free shipping
The SHOP FOX Lathe M1016 is an excellent small-sized lathe with an impressive 9 3/4in. swing and 21in. distance between centers. Includes handy accessories like 5in. 3-jaw chuck, eye shield and 4-way turret tool post. Stand Included: No, HP: 3/4, Volts: 110, Speed (RPM): 150 - 2400, Width Between Centers (in.): 21, Thread Cutting (in.): 8 TPI-40 TPI in 12 steps, Thread Cutting (mm): 12 @ 0.4 - 3.0, Dimensions L x W x H (in.): 23 x 44 x 17 1/2
* Forward/reverse switch with emergency stop
* Swing over cross slide: 6in.
* Tailstock barrel travel: 1/2in.
* Cross slide travel: 4 1/4in.
* Lathe speeds: 150, 240, 490, 750, 1200, 2400 RPM
