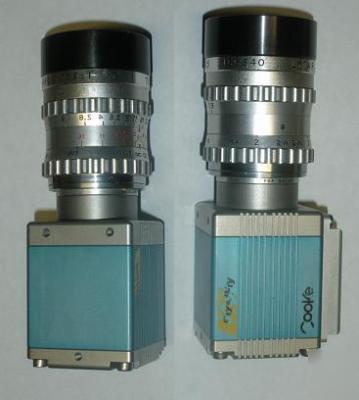

Pixfly cooke ccd camera
Pixelfly high performance digital 12bit CCD camera system
Used item in excellent-like new condition
This high performance digital 12bit CCD camera system features state of the art in CCD and electronics technology. The system consists of an ultra compact camera head, which either connects to a standard PCI or a compact PCI board via a high speed serial data link. The available exposure times range from 5 s to 65s. A digital temperature compensation is integrated instead of a space consuming thermo-electrical cooling unit. All camera functions can be remotely accessed and controlled via digital interface. This compact digital CCD camera system is perfectly suited for many scientific and industrial imaging applications, like microscopy, spectroscopy and quality control. Both cameras are available in the double shutter version featuring 5 s interframing time for PIV (particle image velocimetry) applications. The pixelfly qe has an extraordinary quantum efficiency of up to 65%. The camera is hardened against high magnetic fields.
* superior quantum efficiency up to 65%
* high resolution (1392 x 1024pixel, pixelfly qe)
* exposure times from 5 s - 65s
* serial high speed data transfer up to 12m / 500m optical
* standard PCI or compact PCI control board
efficiency % @ 500nm typical 40
Dynamic range dB CCD + camera 68.7
Readout noise e rms range / typical 11..14 / 12
A/D conversion factor e / count 6.5
Anti-blooming factor @ 100ms exposure time > 1000
Binning vertical pixel 1, 2, 4
Extinction ratio @ 1ms exposure time 1 : 2000
Non linearity (differential) % full temperature range < 2
DSNU count @ 90% center zone 1
Trigger, auxiliary signals internal / external software / TTL level, 24V
Power supply VAC via PCI board
Operating temperature range C +10..+40
Operating humidity range % non condensing 10..90
Storage temperature range C -20..+70
Optical input window fused silica
Data interface PCI,compact PCI
CCD temperature control digital compen-sation
machine vision and industrial applications
bioluminescence / chemoluminescence
Red and NIR fluorescence applications
imaging of bio markers (e.g. green fluorescent protein, GFP)
particle image velocimetry (PIV)
flow visualization (hydrodynamics)
