Pc in motor out cnc stepping motor complete system

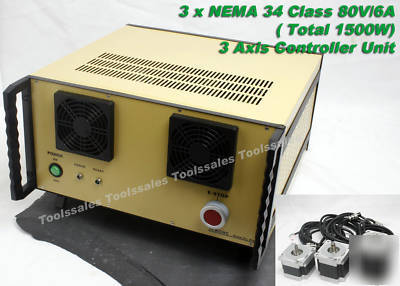

Large size NEMA34 industrial grade CNC stepping driver system.
This is a complete driving system with motors
Plug and play system, PC parallel port input, MOTOR output. all power supply, driver, motor, cable are included in this package.

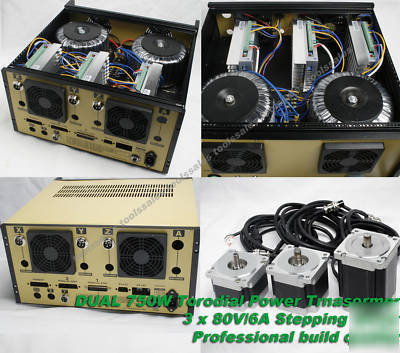

Heavy duty high quality chassis hold the 2 x 800W power transformer secure, yet mature design for air flow, cooling and signal /power routing in this compact chassis.
Chassis Handle for easy carrying.
Main system power supply: dual torodial power transformer 1500W 75V DC
24V 2A signal board power supply: for signal, switch and fan.
Dual primary winding suitable for 110 or 220V ac wiring.
80V/6A micro stepping bi polar motor driver install in easy access and service.
6A 4 PIN large DIN motor connector
Chassis size: 37cm x 25cm x 29cm
other motor size/torque can be arrange for additional cost.
1 x 3 axis CNC controller stepping motor driver unit.
1 x NEMA 34 motor x 65mm ( Lenght) 3/8" x 32mm shaft( 1.7kg) 2.2N.m holding torque
1 x NEMA 34 motor x 80mm ( Lenght) 0.5" x 32mm shaft(2.3kg) 3.0N.m holding torque
1 x NEMA 34 motor x 118mm ( Lenght) 0.5" x 32mm shaft (3.8kg) 6.0N.m holding torque
3 x 2 meter 4 conductor motor cable with connector
All purchased are final, will replace defective product and parts only.
