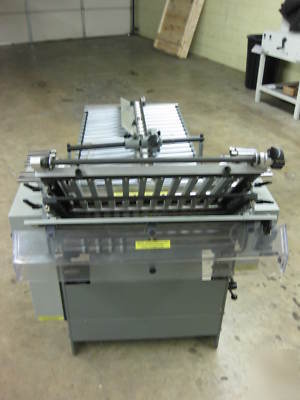

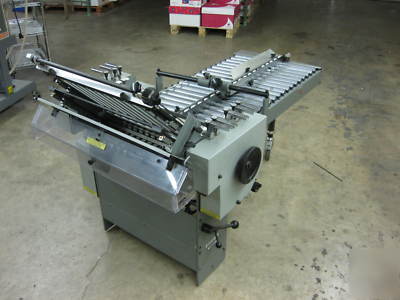

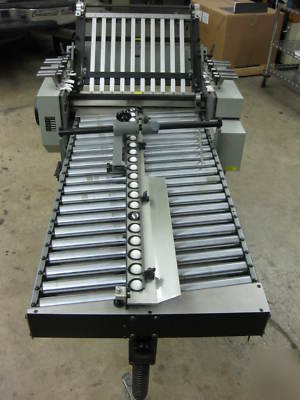

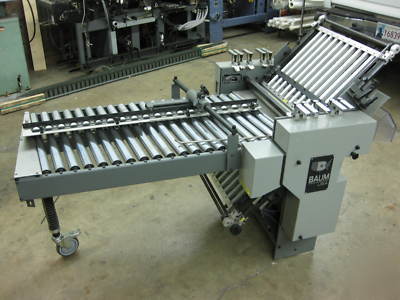

Baum 20 3RD unit - 16 page attachment
The BAUM 20 3rd Station Right Angle Folder offers more folding capability for more than just right angle folding applications. The robust designed unit can be added to the BAUM 20 1st and second station fold units to perform right angle cross folds for 16-page signature requirements and other folds. The BAUM 20 3rd station can also be placed in tandem, in a straight line, to perform more complex roll and accordion folds when more parallel folds are needed that the BAUM 20 2nd station cannot provide for specialty folding.
This quality built folder can also be operated independently using the exclusive selection of BAUM power adapter boxes for inline applications with inkjet tables, forms cutters, creasing machines and more!
Maximum Sheet Size: 20.5 x 20.5 in. (52 x 52cm)
Minimum Sheet Size: 4 x 6 in (10.16 x 15.24 cm)
Electrics: 220/3/60 or 220/1/60 or 220/1/50 or 380-415/3/50
Maximum Folder Speed: 8200 Inches per min (208.3 m/min)
