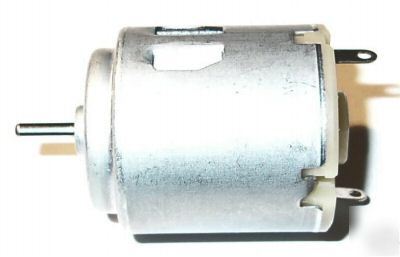

Mabuchi rc-260RA motor - 4.5 vdc - 18,500 rpm - r/c
Mabuchi RC-260RA Motor - 4.5 VDC -18,500 RPM
* Operates on 4.5 VDC nominal
* Recommended operating voltage range 3.0VDC to 4.5VDC
* Full load (maximum efficiency @ 4.5VDC) performance characteristics:
* Torque: 21.8 g-cm (2.14 mN-m)
* Power output: 3.41 Watts
* Stall torque: 125 g-cm (12.3 mN-m)
* Stall current: 6.80 Ampere
* Dimensions (not including shaft): 1.2" long x .93" diameter
* Shaft dimensions: .28" long x .075" (2.0mm) diameter
* Comes with solder eyelets for easy connection
* Popular motor used in many electric devices: Radio control toys, massagers, etc.
* For motor specification sheet, please click this LINK (PDF - 58 kB)
