How-to build sanding disk & cross slide table plans

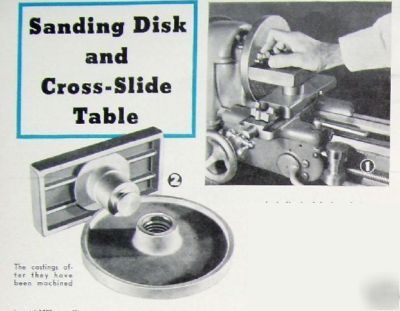

1941 Sanding Disk and Cross-Slide Table Plans
An Original 1941 How-to Build Article / plan as shown below. It was removed from a vintage magazine.
Excerpt: "Wood patterns must be made for the castings. In this case the disk was turned from a piece of solid cherry to the dimensions in the drawings. The standard for the cross-slide table was also turned in the lathe, and the table top built up around it. The dimensions were arrived at by laying the table top to come within a 9" circle (the swing of the lahte) so the job could be machined without having the work done outside..."
