> Barber colman t.a.c mf-5413, MF5413 hydraulic actuator

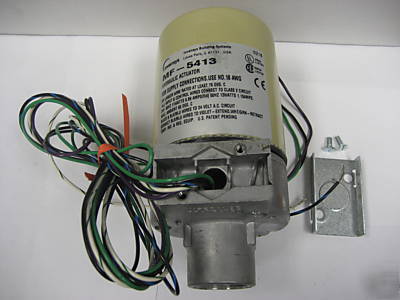

Barber colman t.a.c mf-5413, MF5413 hydraulic actuator
BARBER COLMAN MF-5413 MF5413 (INVENSYS MF-5413)
This is a New Barber Coleman Hydraulic Actuator. This part was purchased from a companies liquidation sale. The part is in good condition.
The MF-5X13 and MF-5X33 Series are small hydraulic
spring return actuators which provide floating control of
hydronic heating and cooling valves or dampers.
Floating actuators controlled by SPDT floating
controllers or DDC controllers with 2 SPST (drive
open, hold, drive close) outputs
All models 24 Vac; optional AM-610 transformer
available for 120, 208, or 240 Vac
Adjustable SPDT auxiliary switch on -500 models
Models available with potentiometer position
Available in damper models or base models that
require damper or valve linkage
Die cast lower housing and painted steel upper
Hydraulic actuator with oil immersed motor and
