4 channel video dvr complete surveillance system cctv
Security Tips & Product Offers

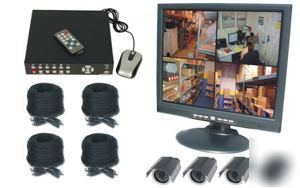

4 Channel Wired Digital Video Recording Complete System
This surveillance system allows you to install up to 4 wired cameras to digitally record all activity. This DVR has full networking capability and uses an embedded DVR which allows you to view live video on the Internet. This complete surveillance system includes cameras, cables, monitor, mouse and remote. This is the perfect all inclusive system at a great price.
This complete surveillance system includes the
(1) Stand Alone 4 channel DVR. (SA-DVR-4)
(4) Day/Night Color Wired Bullet Cameras (BC-30WC)
(4) 100 foot Video Cables (CA-100)
(1) 17 inch LCD Monitor (LCD-17)
CS-DVR4CH 4 Channel Wired Surveillance System
Individual Details For Each Item
Embedded DVRs do not use a Windows operating system. In fact, there is no software at all on the hard
drive. All functions are contained (embedded) on software encoded computer chips. View in real time. Easy
setup. The Embedded series Digital Video Recorders (DVR) operate just like a VCR. However, they have
many features that make them more powerful and easier to use than even the most advanced VCR.
These DVRs converts analog video (NTSC or PAL) to digital images, and records them on a hard disk
drive. Using a disk drive allows users to access recorded video almost instantaneously without having to
rewind or fast forward tape. There is no need to adjust tracking. You can freeze frames and forward or
rewind without image streaking or tearing. Digital video can be indexed by time/date or events, and users
can instantly view video after selecting the time/date or event. The rear panel provides convenient connection
for video and audio input/output.
LCD-17 17" LCD Monitor 1280 x 1024
Supports CCTV Camera input with a wide viewing angle. Sharp
images at a maximum resolution of up to 1280 x 1024 pixels
Resolution (H x V): 1,280 x 1,024 SXGA
Resolution compatibility: VGA, SVGA, XGA
Pixel pitch (H x V): 0.088 x 0.264mm
Speaker (built-in, stereo): 10W x 2
This color bullet camera has a high quality digital CCD chip that automatically switches from color to black &
white in low light conditions. To enhance low light visibility it has 30 built-in high infrared illuminators. Fully weatherproof.
BC-30WC-DN Color Day/Night Bullet Camera
All necessary power supplies and battery packs are included.
- Image Sensor 1/4 COLOR CCD
- Resolution 420 TV Lines / 470 TV Lines
- Min. Illumination 1 Lux f2.0, 0 Lux IR ON
- Power Required DC12V 10%
- Current Consumption 110mA (IR Off)
(4) Power & Video All in One Camera Cables
Power and video on one cable. Eliminates the need to run separate power cable or to find power near the
camera. Makes installation a snap.
CA-100 100' Plug and Play Cable 12v
Please inspect your item when it arrives for proper operation. If you have an issue with operation please contact us within 3 business days to receive a RMA and arrange to have the camera returned. Returns only accepted if item is significantly not as described or damaged upon arrival. Most electronics have a 90 day manufacturer warranty. If you have issues with your item within that 90 day period, contact us and we will provide warranty claims info. We take pride in our service and the accuracy of our descriptions and will work with you whenever possible.
