1997 kent kgs-410AHD 1640 3 axis auto surface grinder

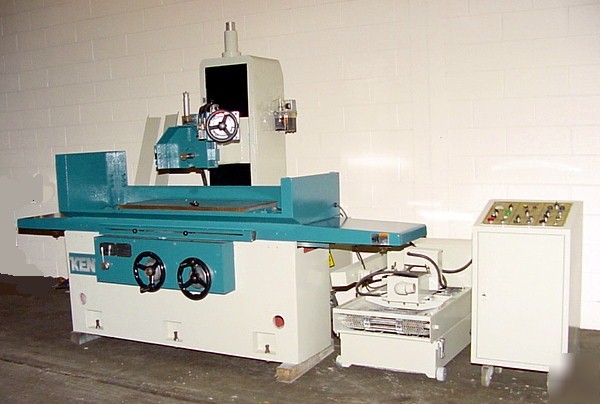

1997 KENT KGS-410AHD 1640 3 AXIS AUTO SURFACE GRINDER
16" X 40" KENT SURFACE GRINDER (COLUMN TYPE)
W/PROGRAMMABLE ELECTRONIC AUTOMATIC DOWNFEED
MODEL: KGS-410AHD S/N: 37027102 NEW: 1997
MAX. GRINDING CAPACITY ..................... 16" X 40"
DIST. FROM SPINDLE CENTER TO TABLE ............... 23"
LONGITUDINAL TABLE TRAVEL ................... 44- 1/2"
CROSS TRAVEL .............................. 17- 11/16"
VARIABLE TABLE SPEED, HYDRAULIC ....... 13' TO 73' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE .................... 60" IPM
CROSSFEED HANDWHEEL PER GRADUATION ............ 0.001"
PER REVOLUTION ............. .................... 0.2"
AUTO DOWN FEED INCREMENT (6 STEPS) ... 0.0002" - .0016"
RAPID VERTICAL POSITIONING RATE ............... 6" IPM
SPINDLE MOTOR .................................. 5 H.P.
STANDARD GRINDING WHEEL ............ 12"D X 1.5" X 5"
APPROX. WEIGHT ............................ 8,250 LBS.
APPROX. DIMENSIONS .................. 98" X 61" X 74"H
W/DIGITAL READOUT DISPLAY FOR VERTICAL AXIS
15.7" X 39.4" "O.S. WALKER HAGOU" (MADE IN NETHERLANDS)
FINE POLE ELECTRO-MAGNETIC CHUCK
** THIS MACHINE HAS BEEN TAKEN APART, THOROUGHLY CLEANED,
SERVICED BY US, CYCLED, AND REPAINTED. IT IS READY
