Wayne kerr psg 2400L sweep signal generator, 2.4GHZ

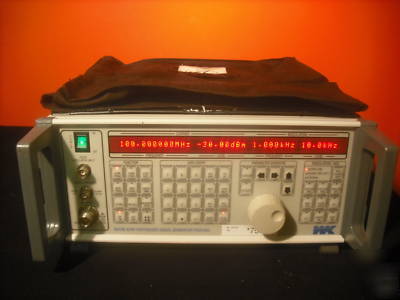

Wayne Kerr PSG 2400L Sweep Signal Generator
Wayne Kerr PSG 2400L features compact size, beautifully construction and exceptional Mil-Spec performance from 100 KHz to 2 GHz with extended performance to 2.4 GHz
* Frequency coverage from 100KHz to 2.4Ghz with up to 1Hz resolution
* Amplitudes of -125.0dBm (0.13uV) to +13dBm (1.0Vrms) into 50ohms with up to 0.05dB resolution
* Modulation Modes include AM, FM, Phase, and Pulse from both internal and external source.
* AM Modulation: 0 to 99% 0.1 Resolution, 50Hz to 25Khz 3dB
* FM Modulation: 10Hz to 200KHz
* Phase Modulation: 0 - 10.0rads, 0.01rad resolution
* Pulse Modulation: 100KHz to 2.4GHz greater then 60dB Pulse Rep Rate .1Hz to 500KHz
* The internal modulation synthesizer range is from 0.1Hz to 500KHz with .2% THD at 1KHz
* Sweep Functions: Carrier Frequency, Carrier Level, Modulation Frequency, Modulation Level
* Start and stop is fully adjustable within any range at sweep time from 1 to 999 seconds
* Internal or external time base: 10MHz
* The instruments from panel layout is both user friendly and comprehensive. Numeric entries can be made from both thumbwheel and keypad. All functions can also be accessed thru the IEEE-488 interface.
* Front Panel is 13 inches (330mm) wide and 5,7 (145mm) inches high, Depth is approx 20 inches
