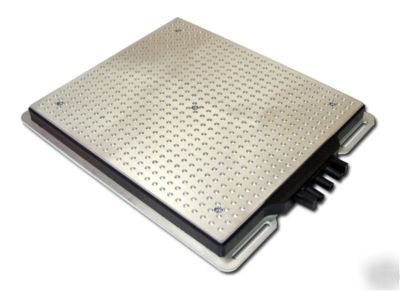

Vacuum table VT2824SEAL cnc engraving or milling
Electronics, electro-technology, engraving, model construction, mould construction, plastics processing , wood-working and metalworking, producing labels and doorplates and manufacturing advertising medium
This product series is the ideal solution for clamping practically all materials on CNC-machines - manually or automatically!
* Use of high-quality materials, thereby high long-term strength.
Wet operation is absolutely no problem. The material is almost distortion-free.
* Multi-function vacuum plate, thereby this device can be used as a raster vacuum table alternatively.
Stops can be set, which permits perfect repeatability during run production.
* Low air consumption with highest possible holding force,
thereby good efficiency with uneven materials or with the use of high pressure vacuum pumps.
* Very low installation height of only 34mm,
thereby no unnecessary work space losses for the Z-axis
* Work area is used up to the edge;
no saved drillings by exaggerated wing tip edge-ridden
* Due to its design one can mount as many vacuum tables as desired directly together.
* Adjustable connecting adapter knows both vacuum cleaner connecting pieces (between 28mm and 44mm) and female hose connectors to take up which make our solution as flexible as possible.
* The vacuum plate can be replaced completely if the worst case happened,
thus it is easy repairable and therefore our device is a save investment!
* Optimal vacuum distribution by a sophisticated channel structure within the vacuum chamber.
* High air consumption by generous design of the connections.
The ultimate vacuum table for wet and dry machine-cut
We suggest to put our vacuum tables on line together with a suitable vacuum pump.
Moreover each module can be switched on or off by a valve or ball valve individually. The retaining force is proportional to covered area, the coefficient of friction and the pressure differential.
This mat serves as a protection for the vacuum plate and if you work pieces need to be countersunk. Hole rubber mats are wearing parts! You can order such mats in our shop reasonably priced.
* Vacuum-clamping-unit VT2824SEAL
* Shop Vacuum connection-adapter and hoses
* Rubber cover mat (for covering unused holes)
* Material: Aluminum, Polyethylene
* Measure: 12.39"x10.25" (314.6 x 260.6 mm)
* Clamping area: 11.0"x9.45" (280 x 240 mm)
