Tektronix OTS9010 10GB OC192 optical test system jitter
TEKTRONIX OTS9010 10GB OC192 OPTICAL TEST SYSTEM JITTER

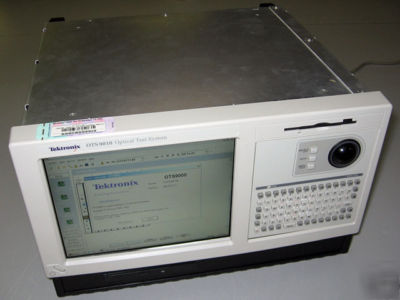

This Tektronix OTS9010 OC192/STM64 Optical Test System with OC-192 Jitter is used and in excellent condition. (1) OTS91L1 OC192/STM64 Tx/Rx Optics Module, (1) OTS91R2 OC192/STM64 Receiver Module, (1) OTS91T3 OC192/STM64 Transmitter Module, (1) OTS91C3 OC192/STM64 Clock and Trigger Module, (1) OTS92H1 10G Clock Recovery Module, (1) OTS92R1 Jitter Analyzer, and (1) OTS92T1 Jitter Generator Installed.
The OTS91L1, OTS91R2, OTS91T3, and OTS91C3 combine to form an OTS9100 10 Gb/s SONET/SDH module with jitter support. The OTS92H1, OTS92R1, and OTS92T1 combine to form an OTS9200 10 Gb/s Jitter Module. This combo of cards provides jitter output and jitter tolerance testing from 155 Mb/s to 10 Gb/s.
* OTS91L1 - OC192/STM64 TRx Optics
* OTS91R2 - OC192/STM64 Receive
* OTS91T3 - OC192/STM64 Transmit
* OTS91C3 - OC192/STM64 Clk\\Trig
* OTS92H1 - OC192/STM64 Clk Rec
* CPU Module P/N: 039-0100 w/ GPIB/SCSI Expansion Slot
* GPIB, SCSI, Ethernet, CD-ROM Drive, Floppy Drive, Built-in Mouse and Keyboard.
* OTS91L1 OC192/STM64 Tx/Rx Optics
* Laser Wavelength: 1550 nm
* Wideband Receive Optics
* OTS91R2 OC192/STM64 Receiver
* OTS91T3 OC192/STM64 Transmitter
* OTS91C3 OC192/STM64 Clock Trigger Card
* OTS92H1 10G Clock Recovery Module
System configuration information:
* 1: OTS91L1 OC192/STM64 Optical Interface #1
* Utility version: 6.0 Build 146
* Serial number: B000627
* Revision: Rev. RX3
* 2: OTS91R2 OC192c/STM64 Receiver #1
* Serial number: B000637
* Revision: Rev. 34
* 3: OTS91T3 OC192c/STM64 Transmitter #1
* Serial number: B000007
* Version: wb164 + bb022
* Revision: rev_1, 08_20_01, wfh
* 4: OTS91C3 OC192/STM64 Clock/Trigger #1
* Serial number: B000006
* 7: OTS92H1 10G Clock Recovery Module
* Serial number: B000008
* 8: OTS92R1 Jitter Analyzer #1
* Revision: Rev. 47 Fast D 16-Jan-02
* 9: OTS92T1 Jitter Generator #1
* Revision: Rev. 02 Tx 21-Nov-01
