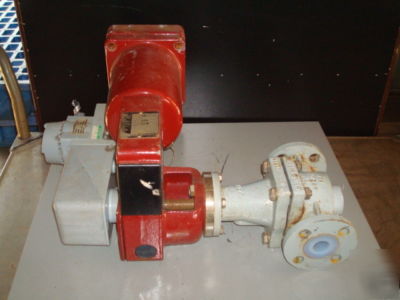

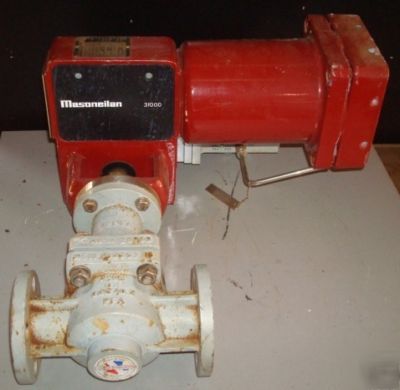

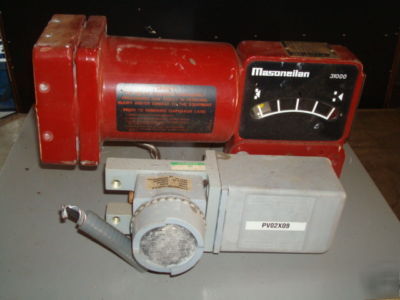

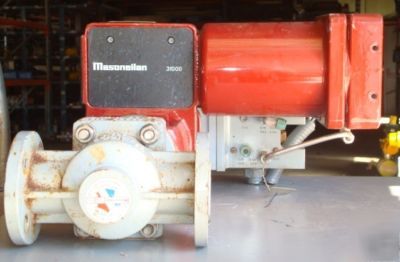

> Rotary control valve: masoneilan 31000-used 1999
Rotary control valve: masoneilan 31000-used 1999
Masoneilan's 31000 Series control valve is a PFA lined assembly designed for corrosive applications. It features an eccentric rotary plug design that provides tight shut off and low dynamic forces.
Make: Masoneilan 31000 Model No: 35-31210 Serial No: B117436-1-1 Tag No: PV-02x09 Built: 1999
Size: 1" PSI: 230 @120 degrees F Supply: 20 PSI Range: 7-15 PSI Actuator: 3.5"
Material of Const: Ductile Iron- PFA Lined Stem: ss TOTAL WEIGHT OF UNIT: 46 lbs.
* Manufacturers Technical Data
The 31000 Series control valve is a PFA lined control
valve for corrosive applications which incorporates the following features:
Eccentric rotary plug providing excellent throttling control accuracy, low dynamic forces and tight shut off.

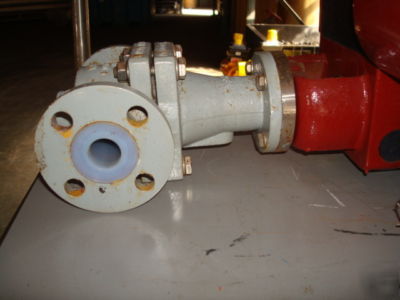

PFA lining with guaranteed minimum wall thickness provides resistance to most corrosive fluids.
Straight through flow pattern resulting in high flow capacities.
PTFE/Graphite packing, chevron rings, backed-up by a double O-ring follower.
Compact dimensions and low weight without compromise to piping forces.
Dovetail grooves for mechanical anchoring between metal body and PFA lining to ensure high performance under vacuum and at high temperature.
Powerful, field proven rolling diaphragm actuator providing positive fail-safe action.
Totally enclosed actuator linkage.
Combination handwheel/adjustable limit stop with locking mechanism.
