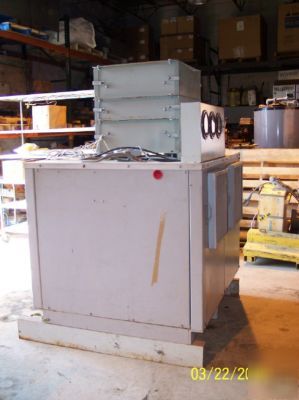

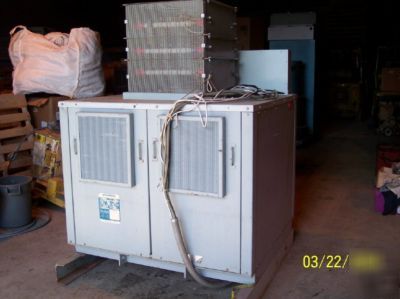

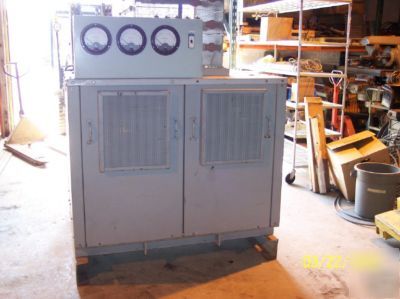

Transformer 112.5 kva dry type
Transformer 112.5 Kva Dry Type
Kva 112.5 ( One-Hundred Twelve and a Half Kva )
Voltage: 480 Delta 2400Y / 1386
Also comes with 440 Volt Separate Coil System ( Wt. 250 Lbs. ) Connection Taps
Voltage Amps
1-2 437 149
2-3 448 145
3-4 460 141
4-5 471 138
5-6 483 134
Weight of Core & Coil 1100 Lbs.
Cabinet Size: 54" x 54" x 6 ft. 4 " High
Unit is in Excellent Condition; Used for Research & Development Only.
